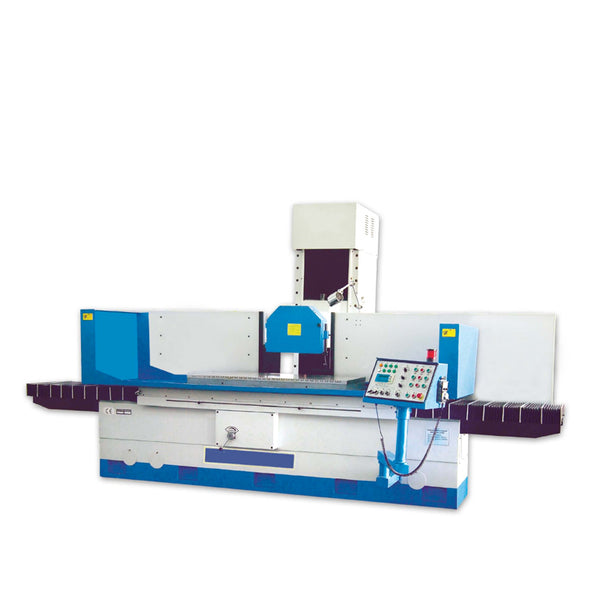

PLC Column Moving Surface Grinder HS-60160SD

Tommy Industrial® PLC Column Moving Surface Grinder Model:  HS-60160SD

No.

Model



1

Surface Grinding Machine HS-60160SD

Standard

2

2 axis Dro System

Standard

3

Static wheel balancing base

Standard

4

Extra wheel flange

Standard

5

Rustlick Coolant

Standard





  1. Features

1.Quality castings and Precision ball bearing supporting the spindle
2.Coolant system with nozzle and flow control valve
3.Cast iron machine body and stand for maximum rigidity and smooth operation
4.The machine can grind all kinds of surfaces or grind complex surfaces by dressing of grinding wheel.
5.Vertical dial graduations 0.01mm
6.Cross travel graduations 0.02mm
7.Manual one shot lubrication pump
8.Wheel balancing stand and arbor
9.Halogen work light

  • Technical Parameter

Item

Unit

HS-60160SD

Table size

mm

610x1600

Max. Grinding (WxL)

mm

610x1600

Max. distance from table to spindle center

mm

820

Magnetic chuck size

mm

600x800x2

Speed of table longitudinal movement

m/min

5-25

Wheelhead cross movement

auto feed

mm/t

1-30

rapid feed

m/min

0.05-2

Feed of electro hand wheel

Mm/gra

0.005

Wheelhead vertical movement

auto feed

mm/t

0.005-0.05

rapid feed

m/min

0.05-2

Feed of electro hand wheel

mm/gra

0.005

Grinding Wheel

speed

rpm

960

size

mm

500x75x305

Spindle motor

kw

18.5

Max. Table loading

kg

1230 (including magnetic chuck)

Total power

kw

28.5

Machine Height

mm

2720

Floor space (LxW)

mm

4700x3000

Gross weight

kg

8500

Standard Accessories:

Wheel flange

Wheel balancing base

Wheel Balancing arbor

Wheel exactor

Coolant tank

Working lamp

Tool box and tools

Diamond Table dresser Base & Tip

Standard grinding wheel

Leveling wedge and bolt

Built in electromagnetic chuck controller

Electrical magnetic chuck

Interloc w/ Control

Wheel flange

Balance stand

Coolant with magnetic separator and paper filter

Manual Parallel wheel dresser

Model Specifications
Item Imperial Metric
