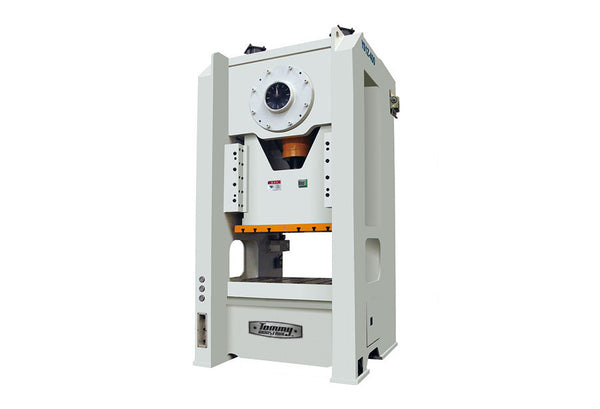

The Tommy Industrial Punch Press line includes 10 models from 90 to 900 tons of pressing power. All Tommy Industrial Punch Presses are fully customizable to individual customer needs and specifications. For more information, contact a Tommy Industrial sales representative today! Check out the speciation’s:
Main Structure Features
High accuracy, reach JIS-Grade1.
Straight side structure and high rigidity steel-welded frame.
High precision, 8-side long guide rail.
Dry type pneumatic clutch-brake unit.
Imported safety dual-solenoid valve for clutch.
High sensitive HOLP.
Automatic oil cycle lubrication system.
FDI (Frequency Drive Inverter).
PLC System.Optional Components: Output shaft, air cushion, slide knockout device, automatic feeder, etc.
|Nominal pressure||175 ton||1600 kN|
|Nominal pressure stroke||0.24 in||6 mm|
|Stroke of slide||7.1 in||180 mm|
|Stroke||35-55 S.P.M.||35-55 S.P.M.|
|Max. die set height||15.7 in||400 mm|
|Die height adjustment||3.9 in||100 mm|
|Distance between uprights||44.8 in||1140 mm|
|Lateral opening size (F-B)||23.6 in||600 mm|
|Bottom size of slide||L-R||39.4 in||1000 mm|
|F-B||23.6 in||600 mm|
|Hole for punch shank||Diameter||Φ 2.8 in||Φ 70 mm|
|Depth||3.1 in||80 mm|
|Size of table||L-R||43.3 in||1100 mm|
|F-B||25.6 in||650 mm|
|Thickness||7.1 in||180 mm|
|Size opening in the table||Φ 7.1 in||Φ 180 mm|
|Main motor power||20 hp||15 kW|
