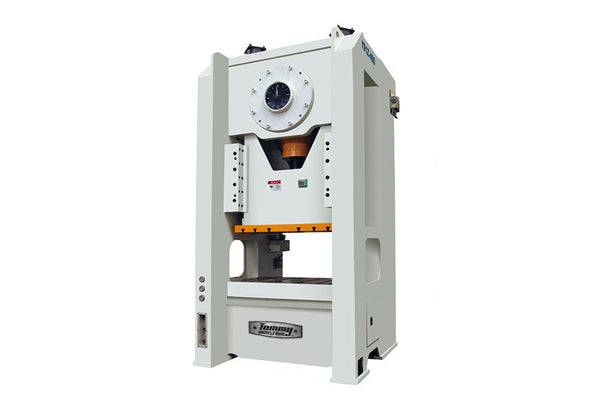

550 TON 59" X 39" Punch Press Machine


The Tommy Industrial Punch Press line includes 10 models from 90 to 900 tons of pressing power.  All Tommy Industrial Punch Presses are fully customizable to individual customer needs and specifications.  For more information, contact a Tommy Industrial sales representative today!  Check out the speciation’s:


Main Structure Features

High accuracy, reach JIS-Grade1.

Straight side structure and high rigidity steel-welded frame.

High precision, 8-side long guide rail.

Dry type pneumatic clutch-brake unit.

Imported safety dual-solenoid valve for clutch.

High sensitive HOLP.

Automatic oil cycle lubrication system.

FDI (Frequency Drive Inverter).

PLC System.

Optional Components: Output shaft, air cushion, slide knockout device, automatic feeder, etc.

Model TIYS1Z-500 Specifications
Item Imperial Metric
Nominal pressure 550 ton 5000 kN
Nominal pressure stroke 0.4 in 10 mm
Stroke of slide 7.9 in 200 mm
Stroke 20-30 S.P.M. 20-30 S.P.M.
Max. die set height 21.7 in 550 mm
Die height adjustment 4.7 in 120 mm
Distance between uprights 60.6 in 1540 mm
Lateral opening size (F-B) 35.4 in 900 mm
Bottom size of slide L-R 55.1 in 1400 mm
F-B 31.5 in 800 mm
Hole for punch shank Diameter Φ 2.8 in Φ 70 mm
Depth 3.9 in 100 mm
Size of table L-R 59.1 in 1500 mm
F-B 39.4 in 1000 mm
Thickness 8.7 in 220 mm
Size opening in the table Φ 9.8 in Φ 250 mm
Main motor power 73.7 hp 55 kW
