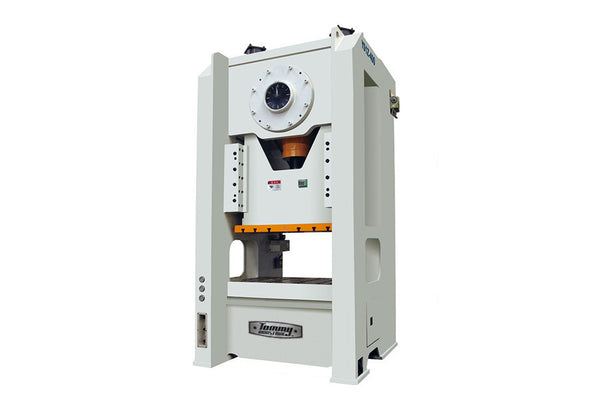

Click or tap above image to zoom and see additional images
The Tommy Industrial Punch Press line includes 10 models from 90 to 900 tons of pressing power. All Tommy Industrial Punch Presses are fully customizable to individual customer needs and specifications. For more information, contact a Tommy Industrial sales representative today! Check out the speciation’s:
Main Structure Features
High accuracy, reach JIS-Grade1.
Straight side structure and high rigidity steel-welded frame.
High precision, 8-side long guide rail.
Dry type pneumatic clutch-brake unit.
Imported safety dual-solenoid valve for clutch.
High sensitive HOLP.
Automatic oil cycle lubrication system.
FDI (Frequency Drive Inverter).
PLC System.Optional Components: Output shaft, air cushion, slide knockout device, automatic feeder, etc.
|Nominal pressure||690 ton||6300 kN|
|Nominal pressure stroke||0.5 in||13 mm|
|Stroke of slide||7.9 in||200 mm|
|Stroke||15-20 S.P.M.||15-20 S.P.M.|
|Max. die set height||21.7 in||550 mm|
|Die height adjustment||4.7 in||120 mm|
|Distance between uprights||70.9 in||1800 mm|
|Lateral opening size (F-B)||39.4 in||1000 mm|
|Bottom size of slide||L-R||55.1 in||1400 mm|
|F-B||47.2 in||1200 mm|
|Hole for punch shank||Diameter||Φ 2.8 in||Φ 70 mm|
|Depth||3.9 in||100 mm|
|Size of table||L-R||67 in||1700 mm|
|F-B||51.2 in||1300 mm|
|Thickness||8.7 in||220 mm|
|Size opening in the table||Φ 9.8 in||Φ 250 mm|
|Main motor power||100.5 hp||75 kW|
