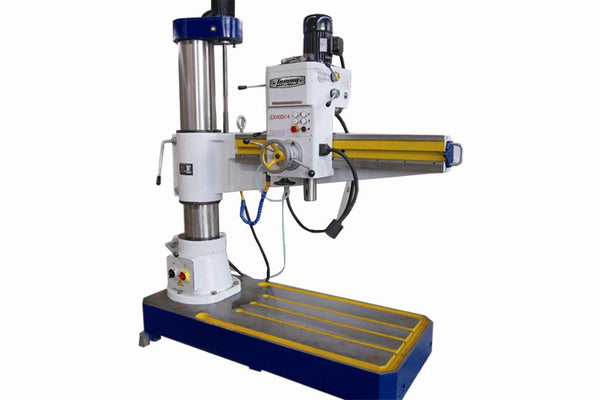

4" MT6 Radial Drill Press

TIZ30100

The Tommy Industrial Radial Drill Press line up is heavy duty and built to last a long time.  The Tommy Industrial Radial Drill Press is available in 3 models.  All Tommy Industrial Drill Presses allow for counter-sinking, spot-facing, drilling, and tapping.  Some features include:

Suitable for drilling, counter-boring, reaming,spot-facing, and tapping

Reliable precision

Easy to operate

Spindle speed adjusted manually or automatically

Hydraulic clamping system

With DRO
Model TIZ30100 Specifications
Item Imperial Metric
Working area Tapping capacity, cast-iron 4 in 100 mm
Spindle end face to workable face distance 30-98 in 750-2500 mm
Spindle axis to column surface 22-124 in 570-3150 mm
Max. arm travel 49 in 1250 mm
Headstock Max. headstock travel 102 in 2580 mm
Spindle travel 20 in 500 mm
Spindle taper MT6 MT6
Spindle speed range (22) 10-900 r/min (22) 10-900 r/min
Drive capacity Motor rating main drive 17 hp 13 kW
Stroke motor 4 hp 3 kW
Motor rating coolant pump 0.1 hp 90 W
Measures and weights Overall dimensions (length x width x height) 183x64x178 in 4650x1630x4525 mm
Weight 44100 lbs 20 T

Model TIZ30100 Specifications
Item Imperial Metric
Working area Tapping capacity, cast-iron 4 in 100 mm
Spindle end face to workable face distance 30-98 in 750-2500 mm
Spindle axis to column surface 22-124 in 570-3150 mm
Max. arm travel 49 in 1250 mm
Headstock Max. headstock travel 102 in 2580 mm
Spindle travel 20 in 500 mm
Spindle taper MT6 MT6
Spindle speed range (22) 10-900 r/min (22) 10-900 r/min
Drive capacity Motor rating main drive 17 hp 13 kW
Stroke motor 4 hp 3 kW
Motor rating coolant pump 0.1 hp 90 W
Measures and weights Overall dimensions (length x width x height) 183x64x178 in 4650x1630x4525 mm
Weight 44100 lbs 20 T

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
