The Tommy Industrial Ram Mill line includes 10 models to choose from. All Tommy Industrial Ram Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
±45°rotary table can be configured
Digital Read Out

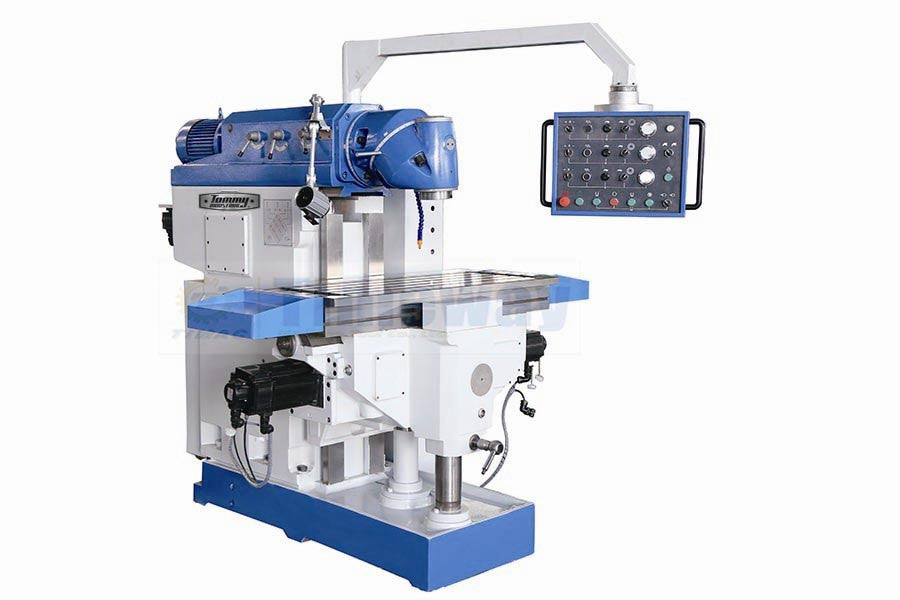

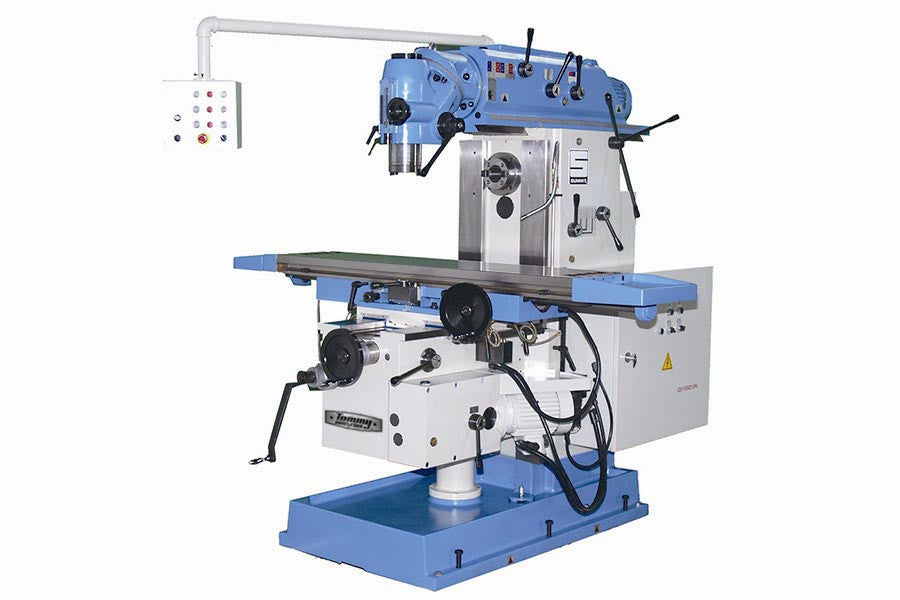

The TIXQ6432C, ram type milling machine from Tommy Industrial is the perfect mill for anyone just getting into machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.Item | Imperial | Metric | |
---|---|---|---|
Working area | Table set up area | 54x13 in | 1370x320 mm |
Number of T-slots | 3 positions | 3 positions | |
T-slots, width | 0.6 in | 14 mm | |
T-slots, spacing | 3 in | 80 mm | |
Travels | Travel X-axis | 39 in | 1000 mm |
Travel Y-axis | 15 in | 380 mm | |
Travel Z-axis | 16 in | 400 mm | |
Horizontal spindle | Spindle speed (horizontal) | (12) 35-1500 rpm | (12) 35-1500 rpm |
Spindle mount (horizontal) | ISO 40 | ISO 40 | |
Spindle nose-to-table surface distance | 3-19 in | 75-475 mm | |
Vertical milling head | Spindle speed (vertical) | (11) 45 - 1,660 rpm | (11) 45 - 1,660 rpm |
Spindle mount (vertical) | ISO 40 | ISO 40 | |
Spindle nose-to-table surface distance | 10-26 in | 260-66 mm | |
Milling head swivel range | 360° | 360° | |
Rapid feed | Rapid feed X-axis | 39 in/min | 1000 mm/min |
Rapid feed Y-axis | 39 in/min | 1000 mm/min | |
Rapid feed Z-axis | 30 in/min | 750 mm/min | |
Feed | Feed speed X-axis | Infinite | Infinite |
Feed speed Y-axis | Infinite | Infinite | |
Feed speed Z-axis | Infinite | Infinite | |
Drive capacity | Motor rating horizontal spindle | 4 hp | 3 kW |
Motor rating vertical spindle | 3 or 4 hp | 2.2 or 3 kW | |
Motor rating X-axis | 10 Nm | 10 Nm | |
Motor rating Y-axis | 10 Nm | 10 Nm | |
Motor rating Z-axis | 10 Nm | 10 Nm | |
Motor rating coolant pump | 0.1 hp | 40 W | |
Measures and weights | Overall dimensions (length x width x height) | 72x66x73 in | 1820x1680x1860 mm |
Weight | 4400 lbs | 1975 kg |
