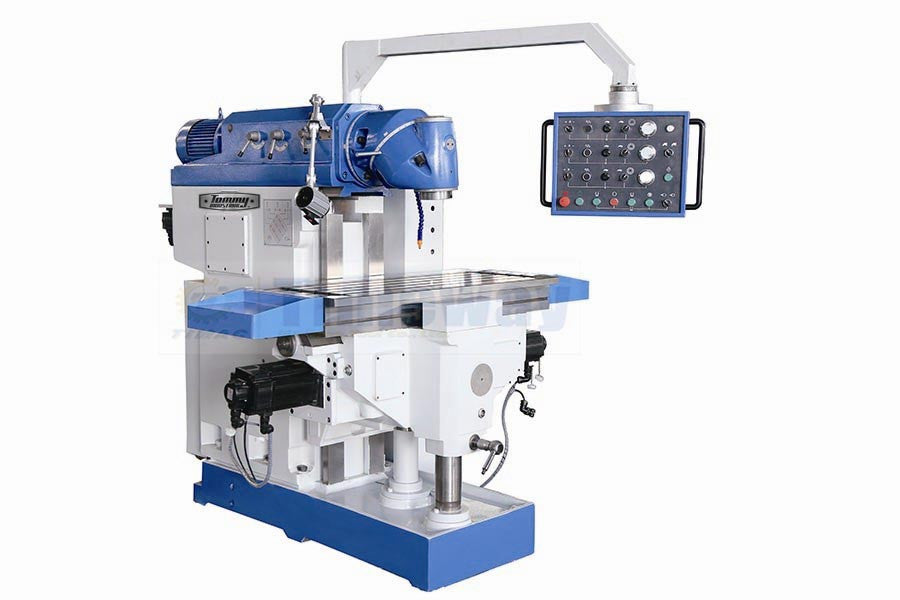

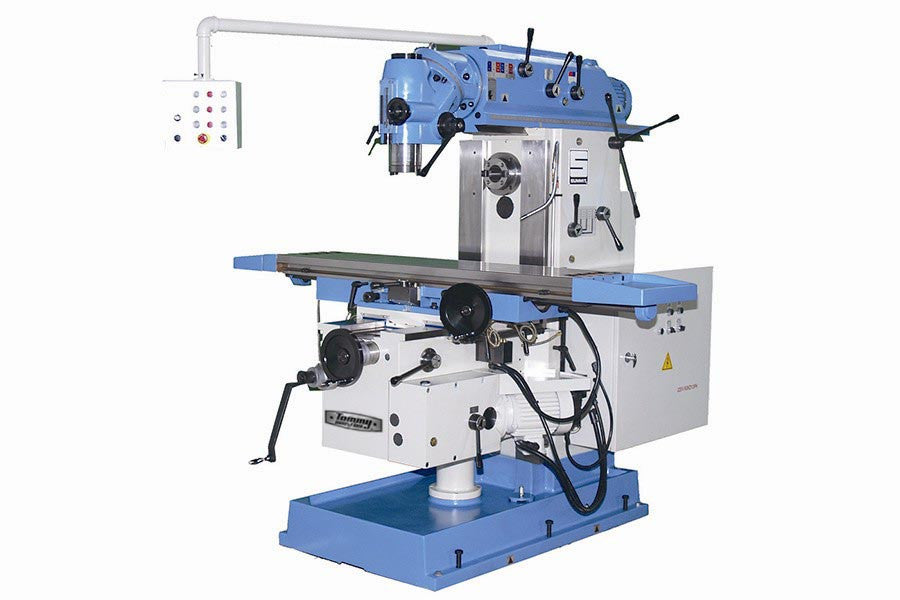

79" X 20" 10 HP Ram Mill

TIX5750A

The Tommy Industrial Ram Mill line includes 10 models to choose from.  All Tommy Industrial Ram Mills are constructed out of high grade steel with a solid frame and heavy duty bed.



The TIX5750A, ram type milling machine from Tommy Industrial is the perfect mill for anyone just getting into machining.   It carries on the tradition of a well built economical machine that will do everything you could ask and more.  220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

Model TIX5750A Specifications
Item Imperial Metric
Working area Table set up area 79x20 in 2000x500 mm
Table load capacity (max.) 3968 lbs 1800 kg
Number of T-slots 5 positions 5 positions
T-slots, width 0.7 in 18 mm
T-slots, spacing 3 in 80 mm
Travels Travel X-axis 55 in 1400 mm
Travel Y-axis 28 in 700 mm
Travel Z-axis 20 in 500 mm
Milling head spindle Spindle speed (27)30-2050 rpm (27)30-2050 rpm
Spindle mount (horizontal) ISO 50 ISO 50
Spindle nose-to-table surface distance 2-22 in 50-550 mm
Milling head swivel range 360° 360°
Rapid feed Rapid feed X-axis 87 in/min 2200 mm/min
Rapid feed Y-axis 87 in/min 2200 mm/min
Rapid feed Z-axis 43 in/min 1100 mm/min
Feed Feed speed X-axis 1-39 in/min 10-1000 mm/min
Feed speed Y-axis 1-39 in/min 10-1000 mm/min
Feed speed Z-axis 0-20 in/min 5-500 mm/min
Drive capacity Motor rating h 10 hp 7.5 kW
Motor rating X-axis 0.02 hp 15 Nm
Motor rating Y-axis 0.02 hp 15 Nm
Motor rating Z-axis 0.03 hp 18 Nm
Measures and weights Overall dimensions (length x width x height) 103x113x82 in 2625x2860x2080 mm
Weight 12125 lbs 5500 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
