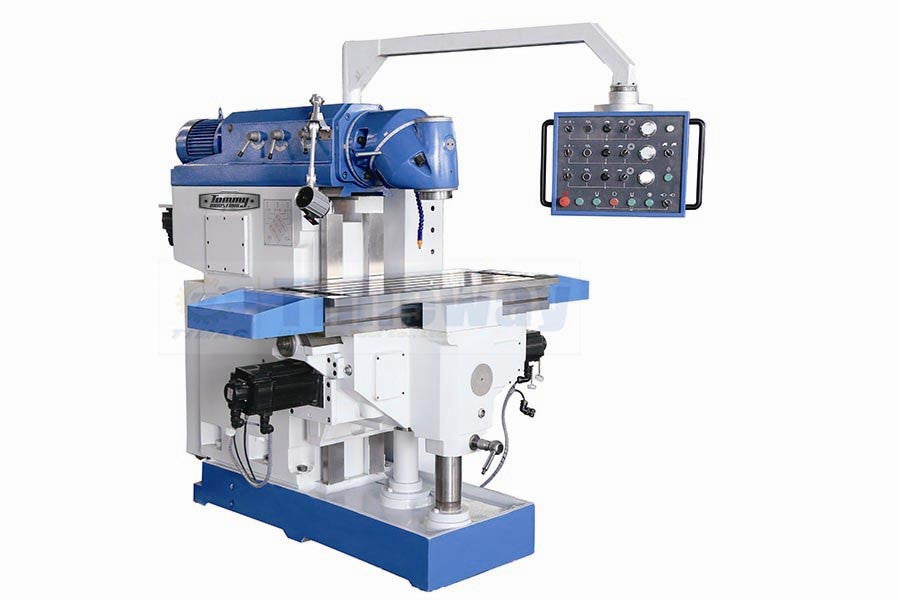

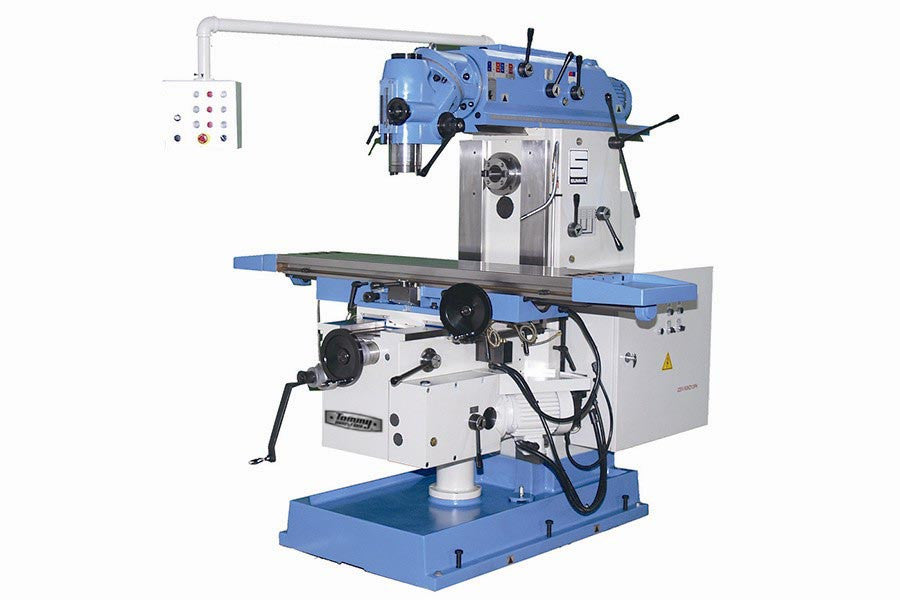

54" X 12" 4 HP Ram Mill

TIXL6430A

The Tommy Industrial Ram Mill line includes 10 models to choose from.  All Tommy Industrial

Ram Mills are constructed out of high grade steel with a solid frame and heavy duty bed.

The TIXL6430A, ram type milling machine from Tommy Industrial is the perfect mill for precision machining.   It carries on the tradition of a well built economical machine that will do everything you could ask and more.  220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.

Model TIXL6430A Specifications
Item Imperial Metric
Working area Table set up area 54x12 in 1370x300 mm
Number of T-slots 3 positions 3 positions
T-slots, width 0.6 in 14 mm
T-slots, spacing 3 in 80 mm
Travels Travel X-axis 32 in 820 mm
Travel Y-axis 12 in 300 mm
Travel Z-axis 16 in 400 mm
Horizontal spindle Spindle speed (horizontal) (12) 35-1500 rpm (12) 35-1500 rpm
Spindle mount (horizontal) ISO 40 ISO 40
Spindle nose to table surface 3-19 in 75-475 mm
Vertical milling feed Spindle speed (vertical) (11) 45 - 1660 rpm (11) 45 - 1660 rpm
Spindle mount (vertical) ISO 40 ISO 40
Spindle nose-to-table surface distance 10-26 in 260-660 mm
Milling head swivel range 360° 360°
Rapid feed Rapid feed X-axis 39 in/min 1000 mm/min
Rapid feed Y-axis 39 in/min 1000 mm/min
Rapid feed Z-axis 30 in/min 750 mm/min
Feed Feed speed X-axis Infinite Infinite
Feed speed Y-axis Infinite Infinite
Feed speed Z-axis Infinite Infinite
Drive capacity Motor rating horizontal spindle 4 hp 3 kW
Motor rating vertical spindle 3 or 4 hp 2.2 or 3 kW
Motor rating X-axis 10 Nm 10 Nm
Motor rating Y-axis 10 Nm 10 Nm
Motor rating Z-axis 10 Nm 10 Nm
Motor rating coolant pump 0.1 hp 40 W
Measures and weights Overall dimensions (length x width x height) 72x66x73 in 1820x1680x1860 mm
Weight 4200 lbs 1900 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
