The Tommy Industrial Ram Mill line includes 10 models to choose from. All Tommy Industrial
Ram Mills are constructed out of high grade steel with a solid frame and heavy duty bed.

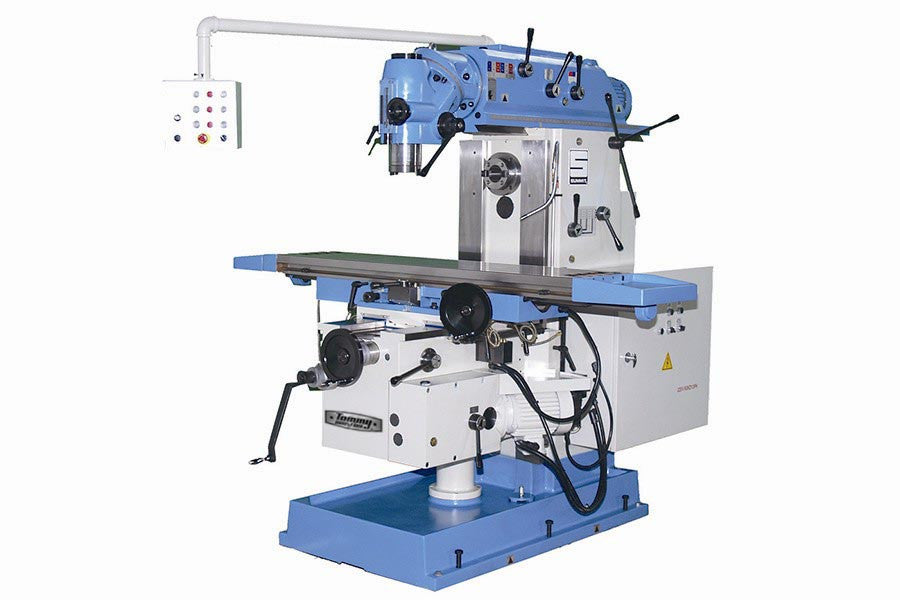

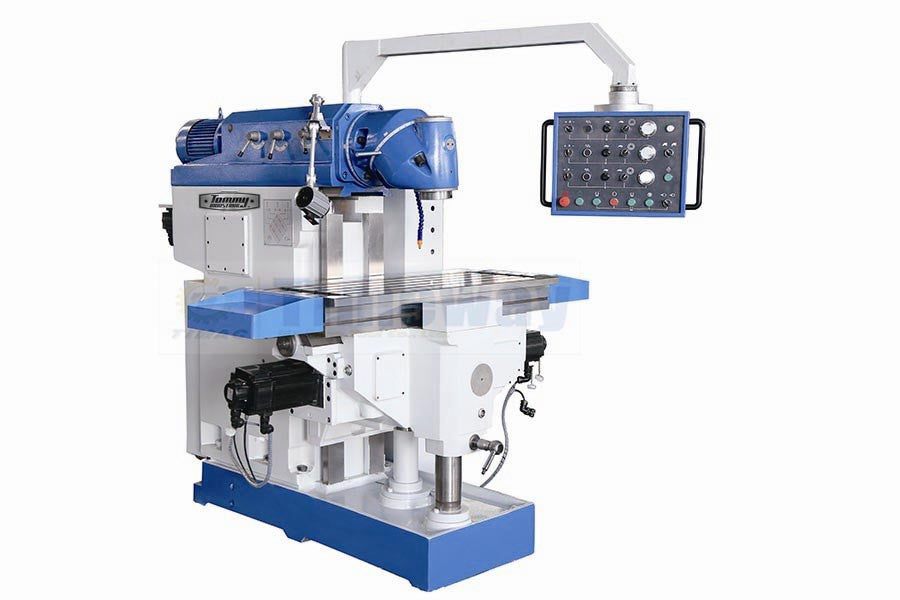

The TIXL6436CL, ram type milling machine from Tommy Industrial is the perfect mill for precision machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.Item | Imperial | Metric | |
---|---|---|---|
Working area | Table set up area | 63x14 in | 1600x360 mm |
Number of T-slots | 3 positions | 3 positions | |
T-slots, width | 0.7 in | 18 mm | |
T-slots, spacing | 3 in | 80 mm | |
Travels | Travel X-axis | 51 in | 1300 mm |
Travel Y-axis | 13 in | 320 mm | |
Travel Z-axis | 18 in | 450 mm | |
Horizontal spindle | Spindle speed (horizontal) | (12) 60-1800 rpm | (12) 60-1800 rpm |
Spindle mount (horizontal) | ISO 50 | ISO 50 | |
Spindle nose to table surface | 1-19 in | 20-470 mm | |
Vertical milling feed | Spindle speed (vertical) | (12) 60-1750 rpm | (12) 60-1750 rpm |
Spindle mount (vertical) | ISO 50 | ISO 50 | |
Spindle nose-to-table surface distance | 8-25 in | 196-646 mm | |
Milling head swivel range | 360° | 360° | |
Feed | Feed speed X-axis | 1-30 in/min | 30-750 mm/min |
Feed speed Y-axis | 1-20 in/min | 20-500 mm/min | |
Feed speed Z-axis | 1-15 in/min | 15-375 mm/min | |
Drive capacity | Motor rating horizontal spindle | 7 hp | 5.5 kW |
Motor rating vertical spindle | 5 hp | 4 kW | |
Motor rating X-axis | 10 Nm | 10 Nm | |
Motor rating Y-axis | 10 Nm | 10 Nm | |
Motor rating Z-axis | 10 Nm | 10 Nm | |
Measures and weights | Overall dimensions (length x width x height) | 99x83x79 in | 2520x2100x2000 mm |
Weight | 6200 lbs | 2800 kg |
