The Tommy Industrial Ram Mill line includes 10 models to choose from. All Tommy Industrial
Ram Mills are constructed out of high grade steel with a solid frame and heavy duty bed.

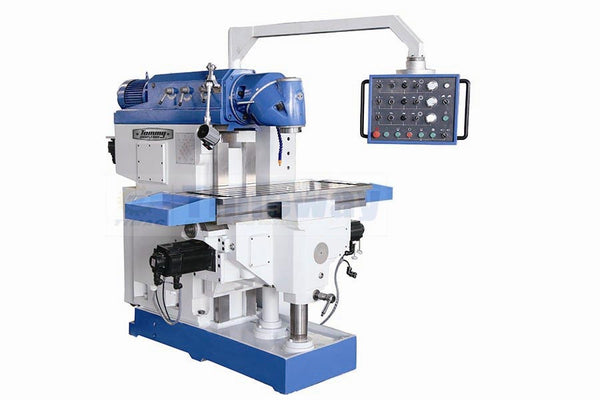

The TIXL6436C, ram type milling machine from Tommy Industrial is the perfect mill for precision machining. It carries on the tradition of a well built economical machine that will do everything you could ask and more. 220 volt, 380 volt and other customized voltage allow being run just about anywhere, making it a good fit for just about any size fabricator or machine shop.
|Working area||Table set up area||52x14 in||1325x360 mm|
|Number of T-slots||3 positions||3 positions|
|T-slots, width||0.7 in||18 mm|
|T-slots, spacing||3 in||80 mm|
|Travels||Travel X-axis||43 in||1100 mm|
|Travel Y-axis||13 in||320 mm|
|Travel Z-axis||18 in||450 mm|
|Horizontal spindle||Spindle speed (horizontal)||(12) 60-1800 rpm||(12) 60-1800 rpm|
|Spindle mount (horizontal)||ISO 50||ISO 50|
|Spindle nose to table surface||1-19 in||20-470 mm|
|Vertical milling feed||Spindle speed (vertical)||(12) 60-1750 rpm||(12) 60-1750 rpm|
|Spindle mount (vertical)||ISO 50||ISO 50|
|Spindle nose-to-table surface distance||8-25 in||196-646 mm|
|Milling head swivel range||360°||360°|
|Feed||Feed speed X-axis||1-30 in/min||30-750 mm/min|
|Feed speed Y-axis||1-20 in/min||20-500 mm/min|
|Feed speed Z-axis||1-15 in/min||15-375 mm/min|
|Drive capacity||Motor rating horizontal spindle||7 hp||5.5 kW|
|Motor rating vertical spindle||5 hp||4 kW|
|Motor rating X-axis||10 Nm||10 Nm|
|Motor rating Y-axis||10 Nm||10 Nm|
|Motor rating Z-axis||10 Nm||10 Nm|
|Measures and weights||Overall dimensions (length x width x height)||88x83x79 in||2245x2100x2000 mm|
|Weight||6100 lbs||2750 kg|
