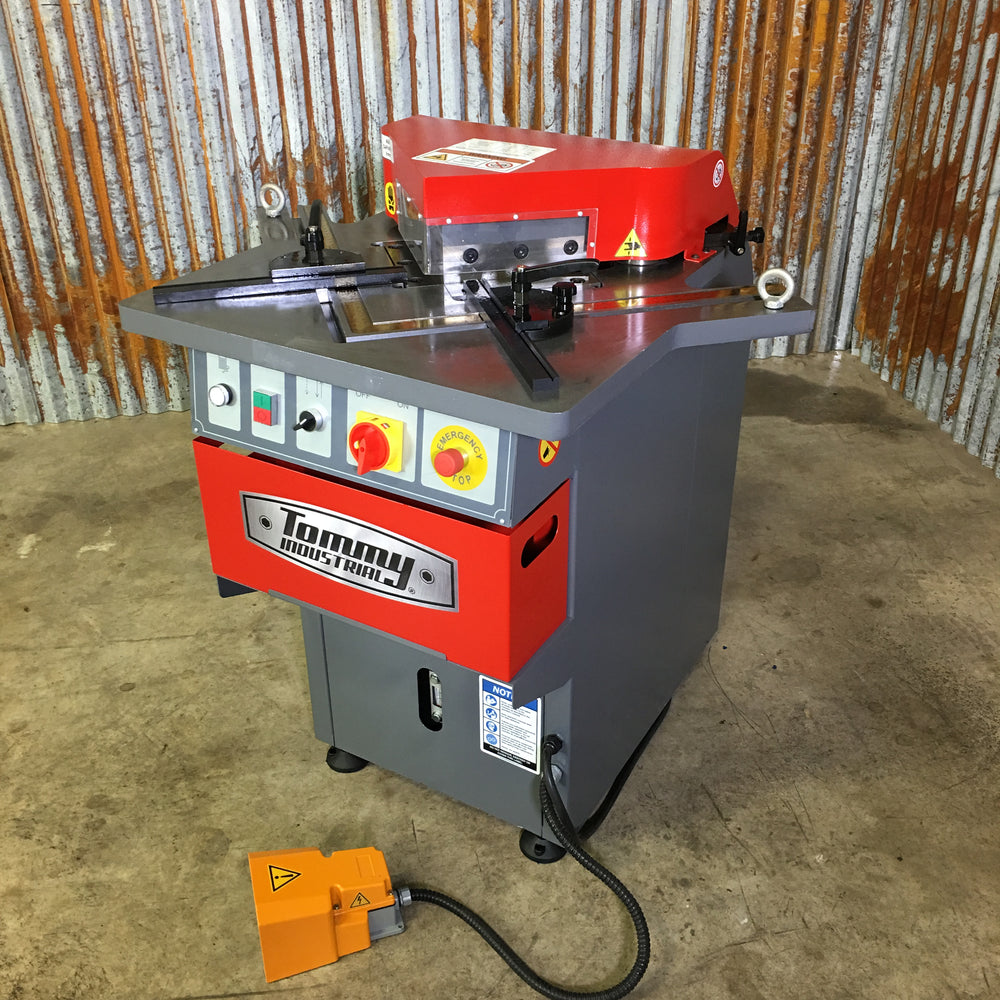

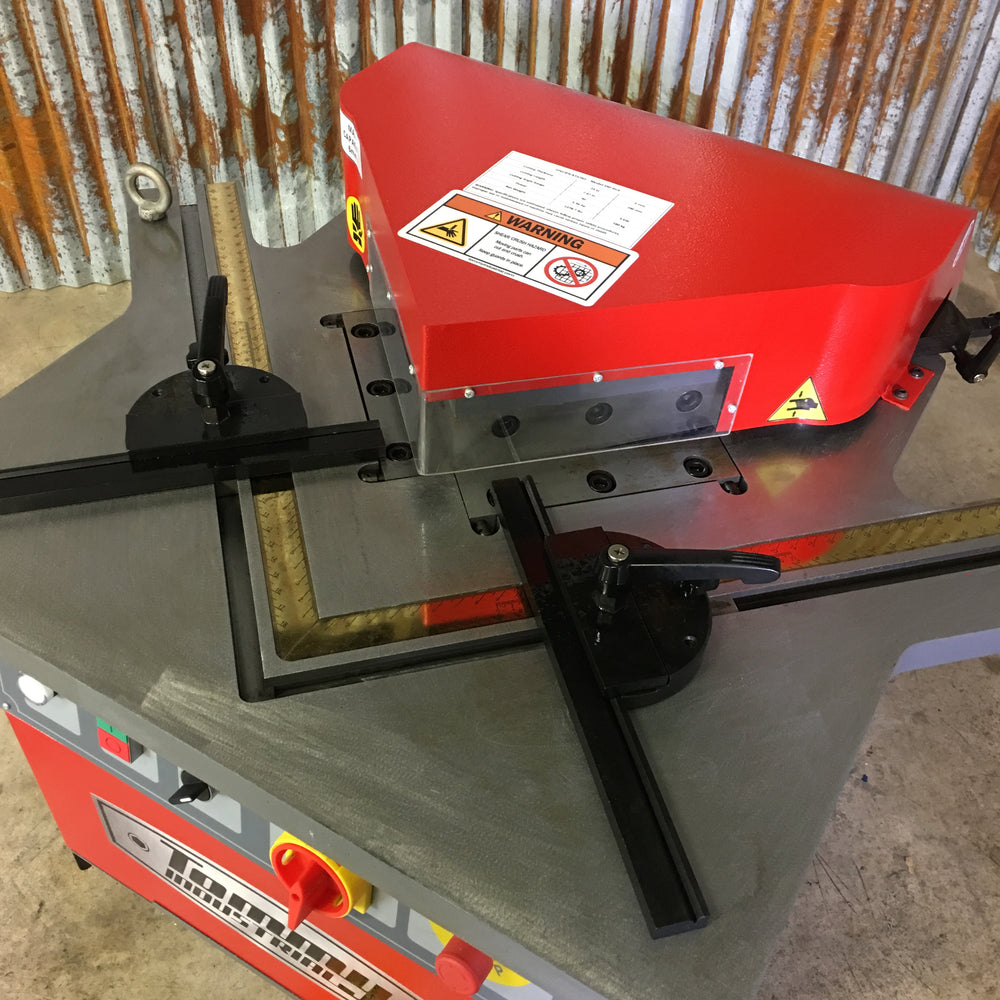

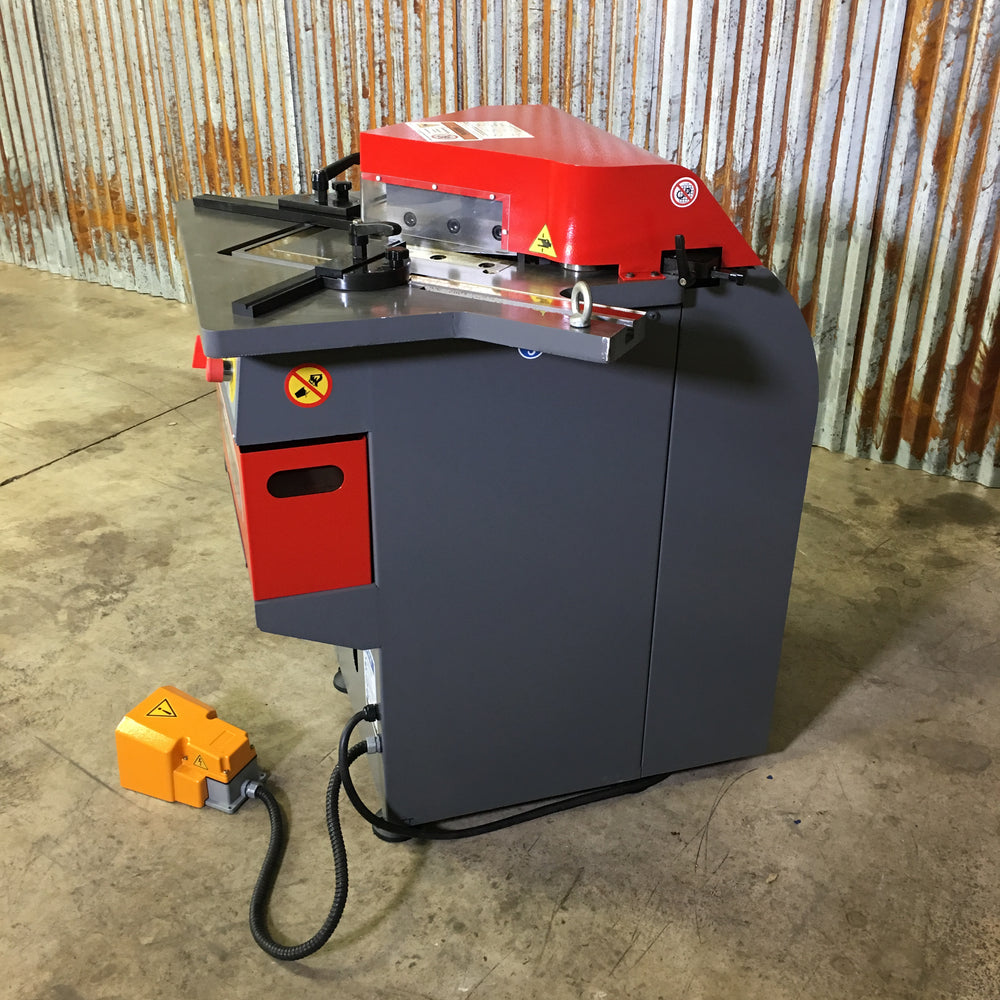

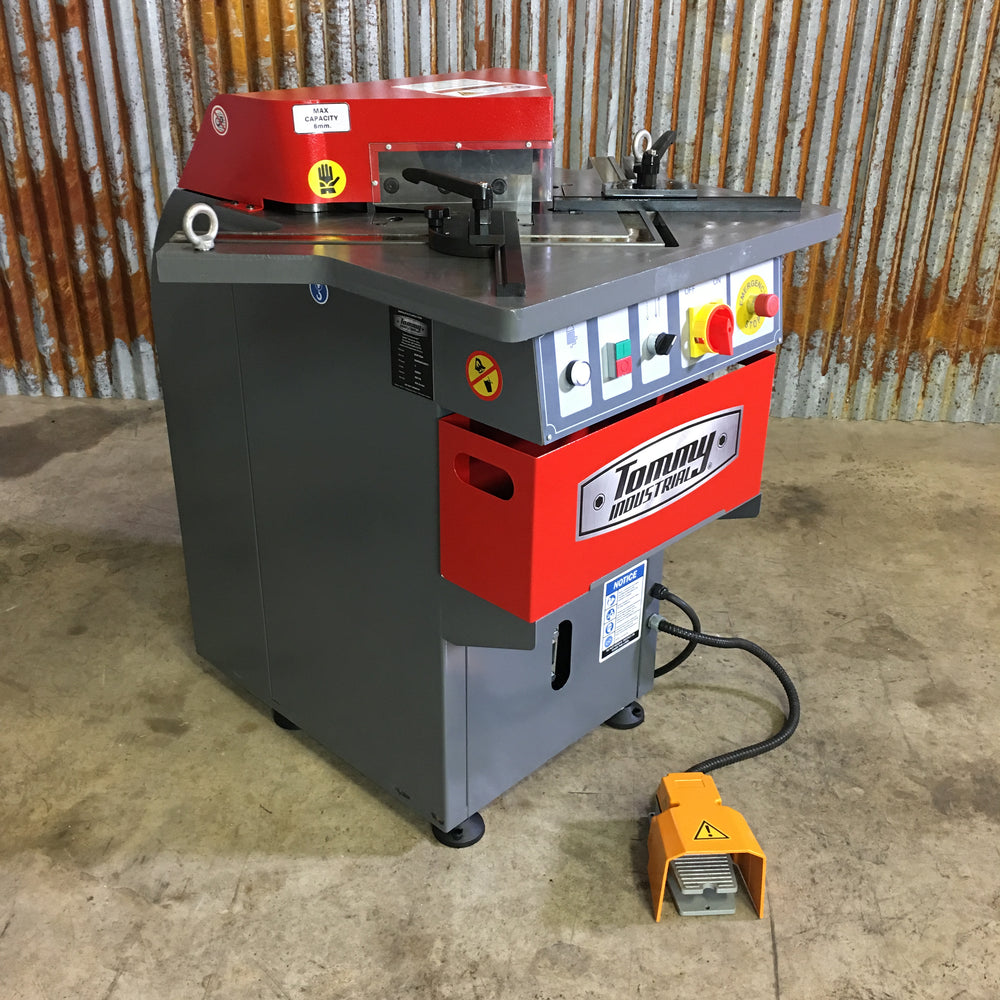

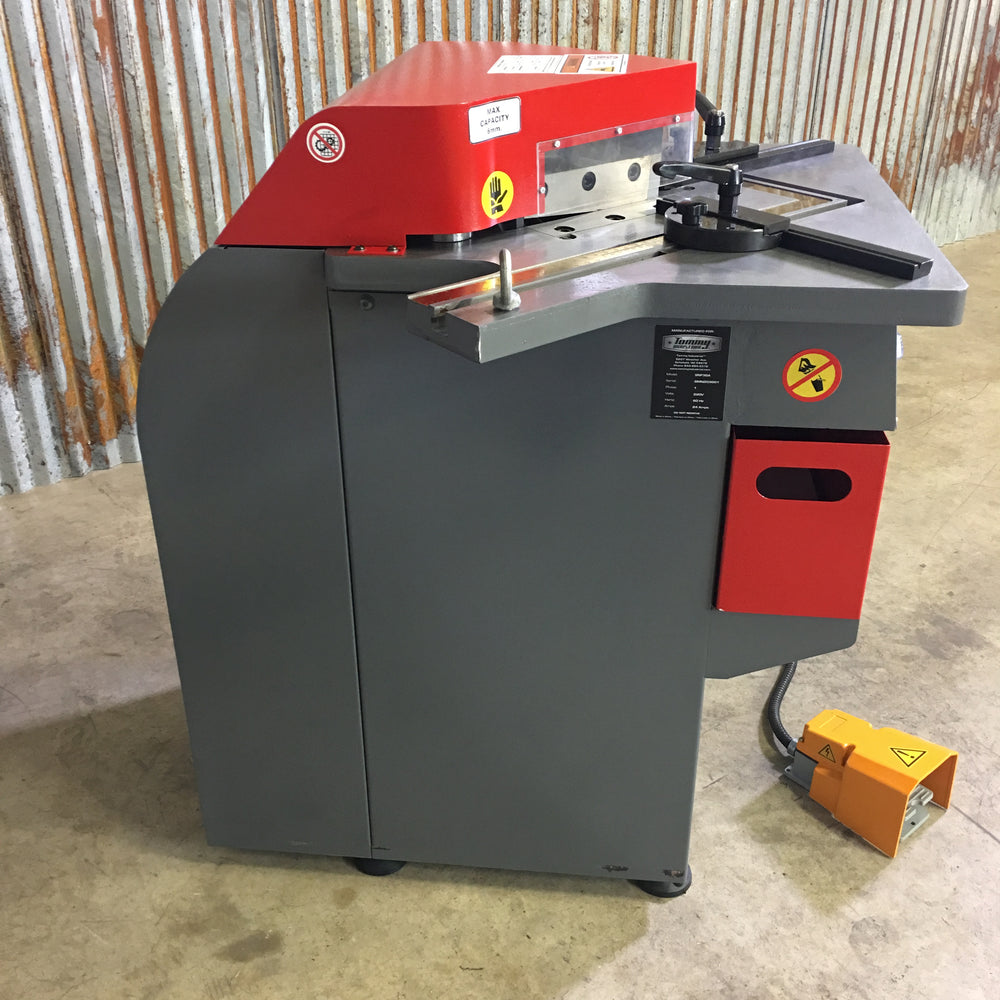

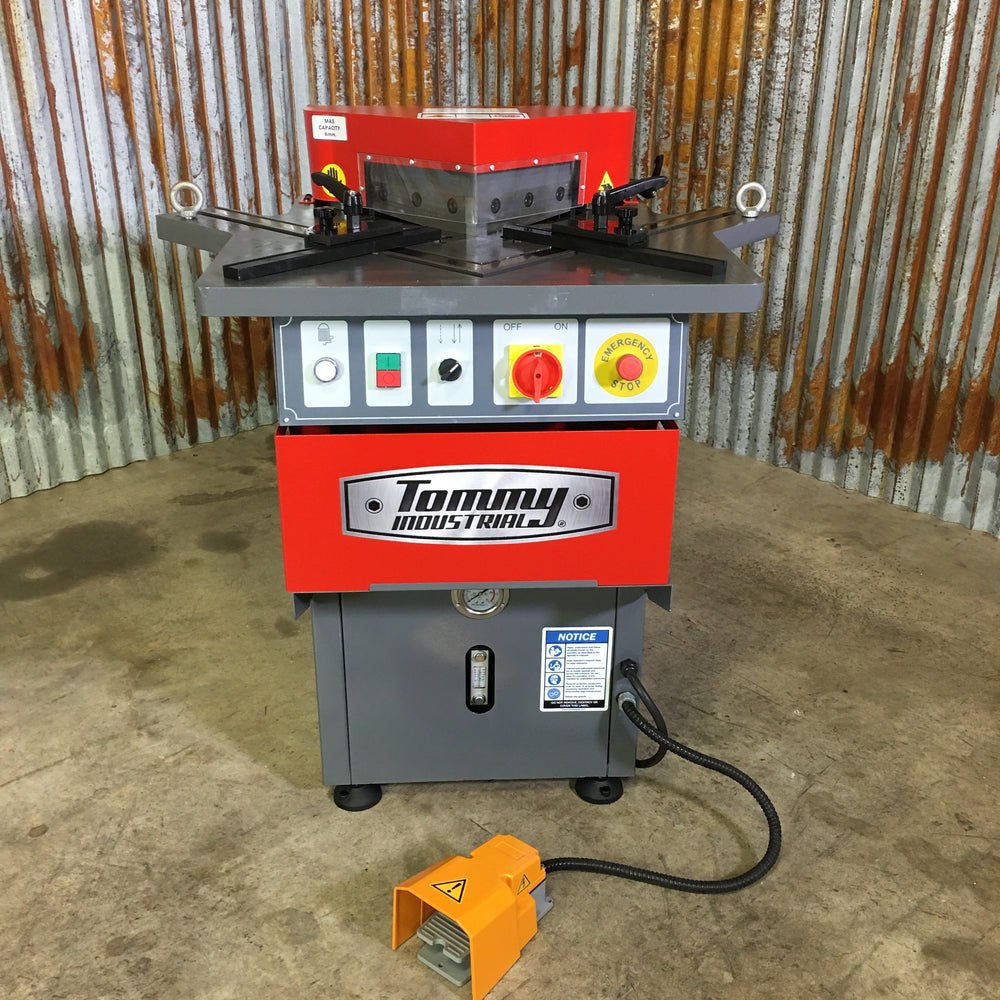

Sheet Metal Corner Notcher SNV3GA $12,795.00

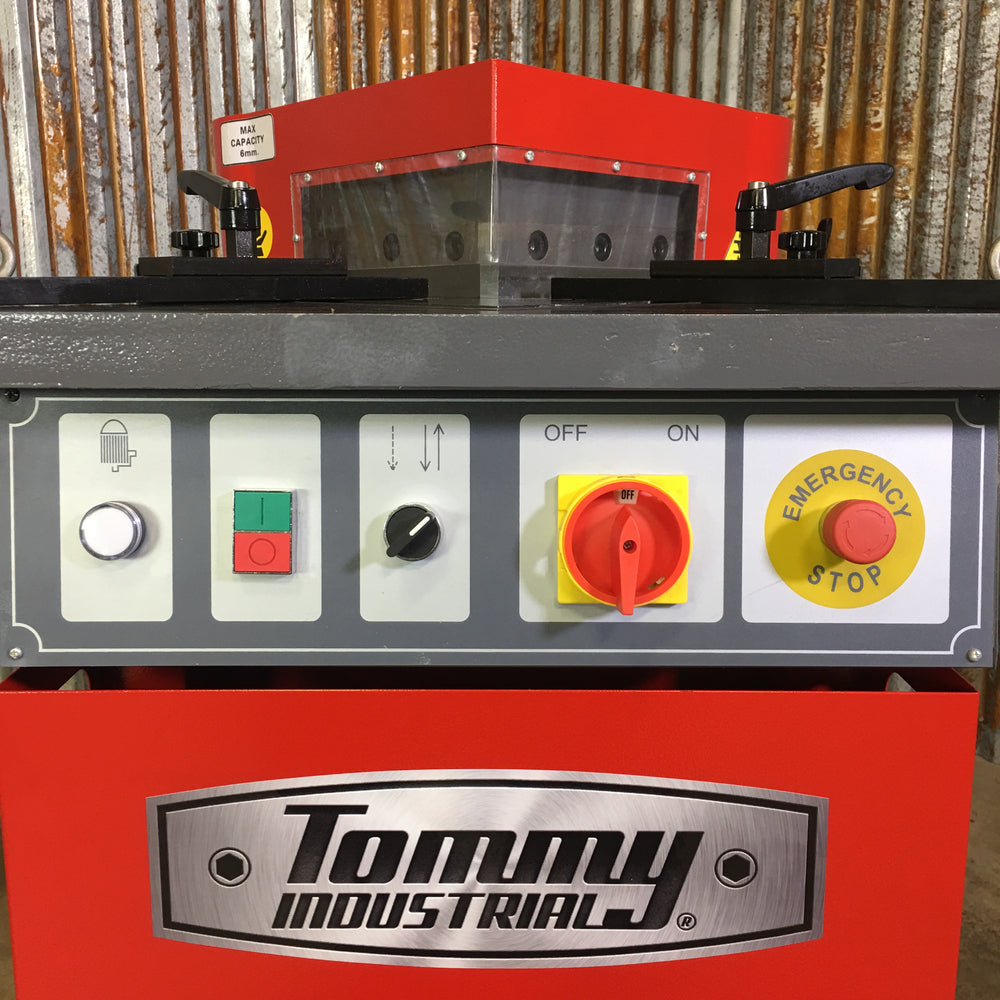

The Tommy Industrial Sheet Metal Notcher line features heavy duty variable angle notching from 45 to 135 degree.  The Tommy Industrial Notcher’s can operate on single step or automatic operating modes.  The standard stroke adjustment which limits the stroke to a preset position. You can therefore produce defined shears, not necessarily ending at the edge of the material and you can increase your stroke rate with the shortest possible stroke for each task. For more information, contact a Tommy Industrial sales associate.

Model SNV3GA Specifications
Item Imperial Metric
Cutting thickness 0.24in 6mm
Cutting length 7.87in 200mm
Cutting angle range 60°~135°
Power 7.37hp 5.5kW
Dimensions 59.06x39.37x55.12in 1500x1000x1400mm
Net weight 3240.80lbs 1470kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
