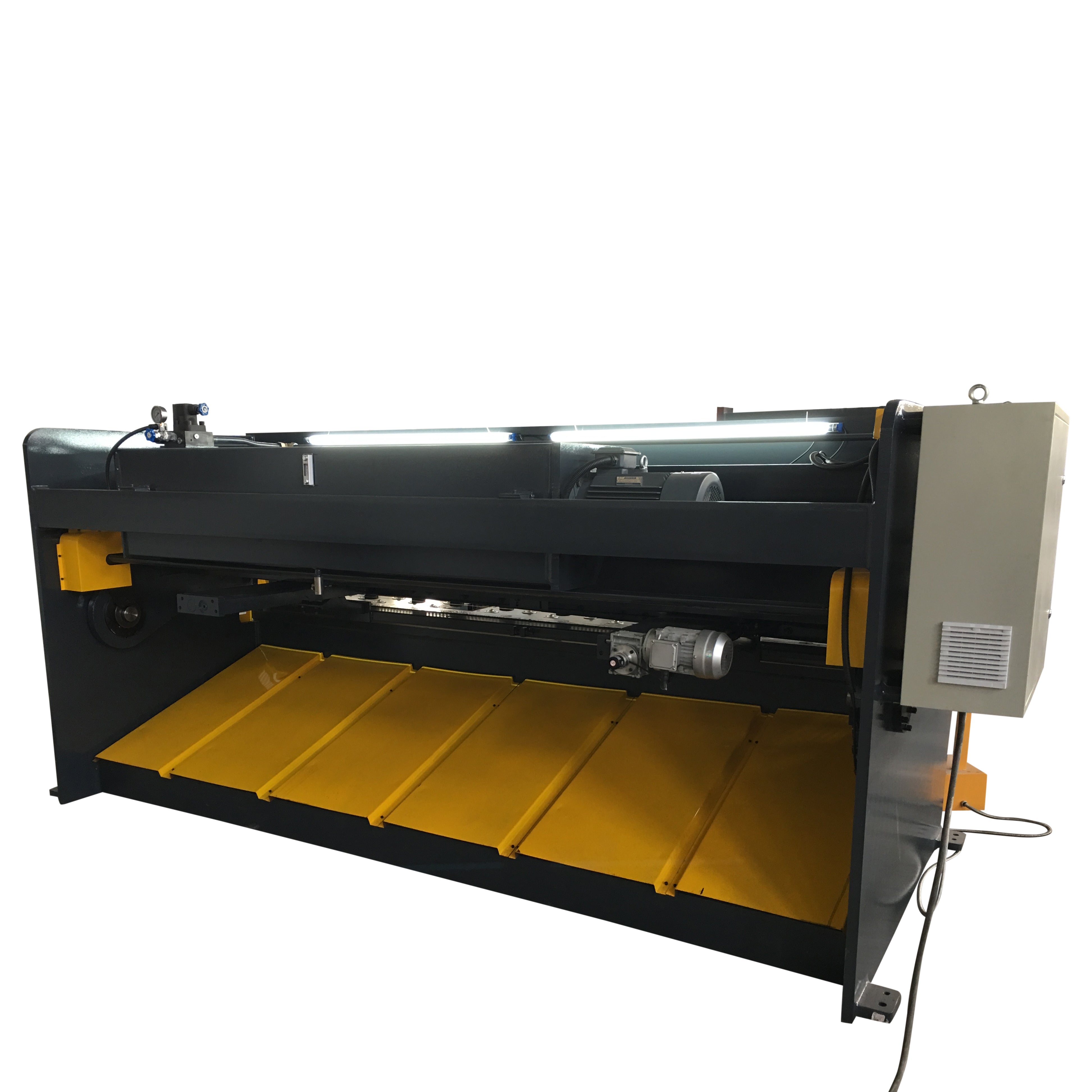

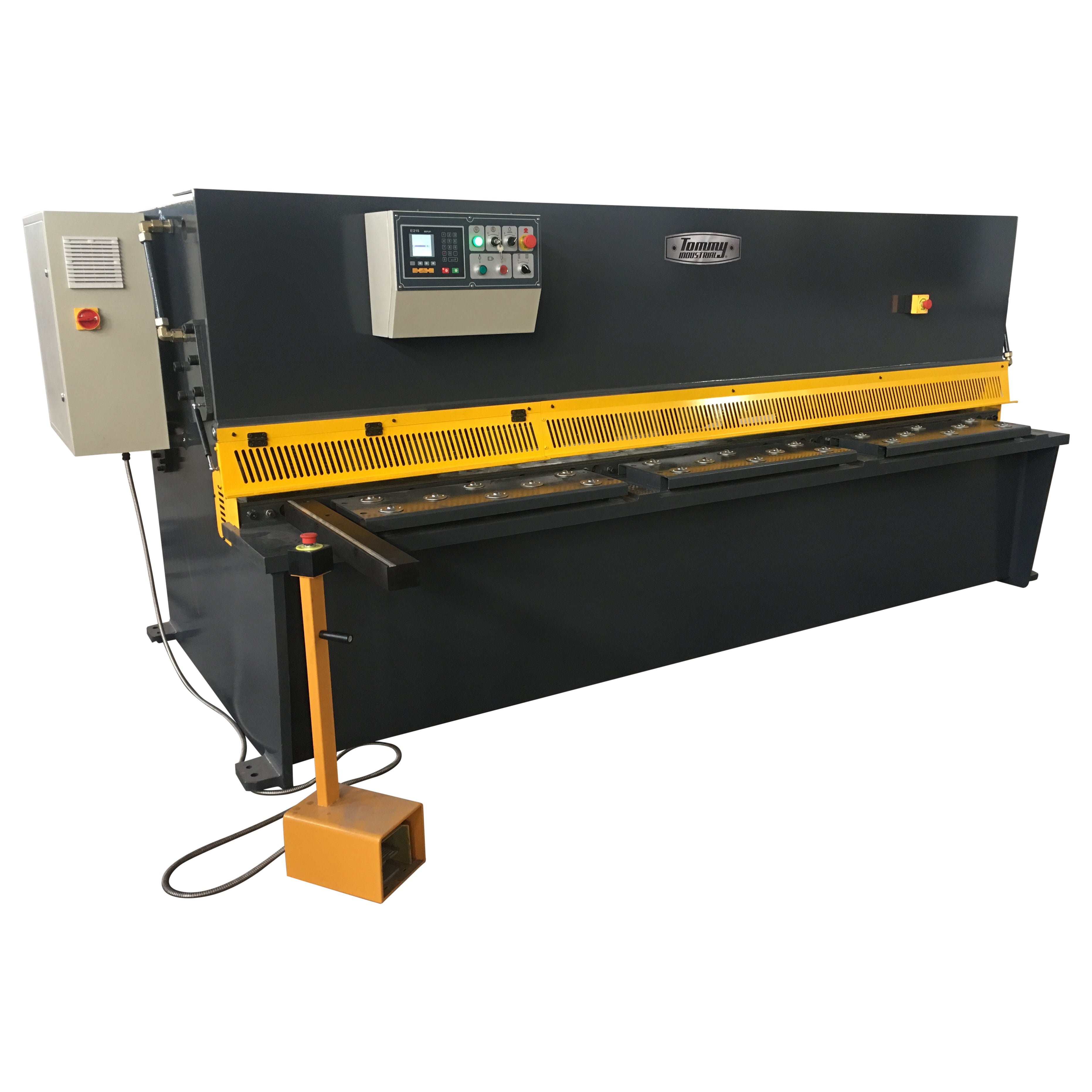

10' X 5/16" Sheet Metal Shears

SBSB10-5/16

The Tommy Industrial Hydraulic Metal Shear Line features 34 models.  All models include hydraulic drive shearing action stabilized by a fully welded durable frame structure.  The Tommy Industrial Sheet Metal Shears feature a Numerical control system that allows for multi-step programming saving time and increasing productivity.  For more information, contact a Tommy Industrial sales associate.

Model SBSB10-5/16 Specifications
Item Imperial Metric
Cutting thickness 0.31in 8mm
Cutting length 125.98in 3200mm
Travel times 12 times per min
Backgauge range 21.65in 550mm
Cutting angle 1.5°
Throat depth 3.94in 100mm
Power 10.05hp 7.5kW
Dimensions 147.24x65.55x63.78in 3740x1665x1620mm

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
