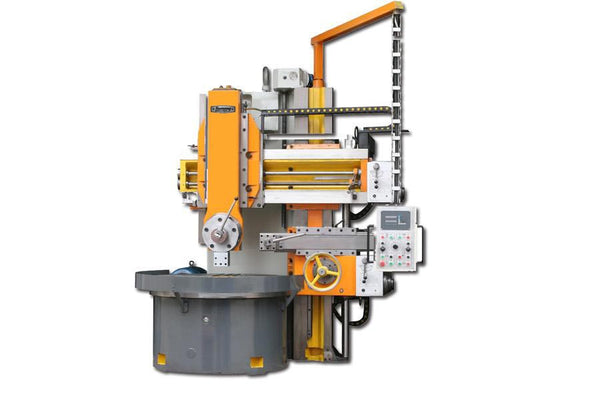

39" X 39" 29.5 HP Single Column Vertical Lathe

TIC5112

With the Tommy Industrial Vertical Lathe Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these Vertical Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops.  Features Include

–Plastic coated guide ways are wearable

–Centralized lubricating oil supplying is convenient

–The spindle is to use model NN30(Grade D)bearing and able to turn precisely

–Gear case is to use 40 Cr gear wheel of gear grinding, which has high precision

–Castings of lathe are to use lost foam foundry(short for LFF)technique. Castings are wearable with good quality and dealt by aging

–Vertical lathe can make rough and accurate turning of cylindrical surface, conical surface, head face, grooving, severance,etc

Model TIC5112 Specifications
Item Imperial Metric
Working Area Turning diameter of tool post 49 in 1250 mm
Working table diameter 39 in 1000 mm
Workpiece height (max.) 39 in 1000 mm
Workpiece weight (max.) 7055 lbs 3200 kg
Tool post Max. cutting force of tool post 20 KN 20 KN
Horizontal travel of tool post 28 in 700 mm
Vertical travel of tool post 26 in 650 mm
Swing angle of tool post ±30° ±30°
Drive Capacity Motor rating main drive 29.5 Hp 22 kW
Measures and weights Overall dimensions (length x width x height) 90x100x134 in 2280x2550x3400 mm
Weight 19842 lbs 9000 kg
