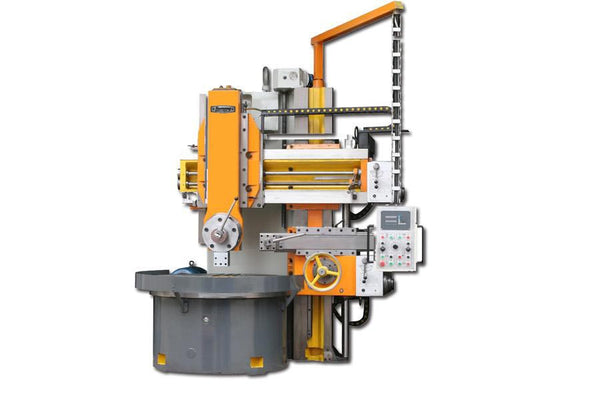

79" X 49" 40 HP Single Column Vertical Lathe
TIC5123
With the Tommy Industrial Vertical Lathe Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these Vertical Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include
–Plastic coated guide ways are wearable
–Centralized lubricating oil supplying is convenient
–The spindle is to use model NN30(Grade D)bearing and able to turn precisely
–Gear case is to use 40 Cr gear wheel of gear grinding, which has high precision
–Castings of lathe are to use lost foam foundry(short for LFF)technique. Castings are wearable with good quality and dealt by aging
–Vertical lathe can make rough and accurate turning of cylindrical surface, conical surface, head face, grooving, severance,etc| Item | Imperial | Metric | |
|---|---|---|---|
| Working Area | Turning diameter of tool post | 91 in | 2300 mm |
| Working table diameter | 79 in | 2000 mm | |
| Workpiece height (max.) | 49 in | 1250 mm | |
| Workpiece weight (max.) | 17637 lbs | 8000 kg | |
| Tool post | Max. cutting force of tool post | 25 KN | 25 KN |
| Horizontal travel of tool post | 48 in | 1210 mm | |
| Vertical travel of tool post | 31 in/ 39 in | 800 mm/ 1000 mm | |
| Swing angle of tool post | ±30° | ±30° | |
| Drive Capacity | Motor rating main drive | 40 Hp | 30 kW |
| Measures and weights | Overall dimensions (length x width x height) | 127x128x154 in | 3235x3240x3910 mm |
| Weight | 43652 lbs | 19800 kg | |
| Item | Imperial | Metric | |
|---|---|---|---|
| Working Area | Turning diameter of tool post | 91 in | 2300 mm |
| Working table diameter | 79 in | 2000 mm | |
| Workpiece height (max.) | 49 in | 1250 mm | |
| Workpiece weight (max.) | 17637 lbs | 8000 kg | |
| Tool post | Max. cutting force of tool post | 25 KN | 25 KN |
| Horizontal travel of tool post | 48 in | 1210 mm | |
| Vertical travel of tool post | 31 in/ 39 in | 800 mm/ 1000 mm | |
| Swing angle of tool post | ±30° | ±30° | |
| Drive Capacity | Motor rating main drive | 40 Hp | 30 kW |
| Measures and weights | Overall dimensions (length x width x height) | 127x128x154 in | 3235x3240x3910 mm |
| Weight | 43652 lbs | 19800 kg | |
