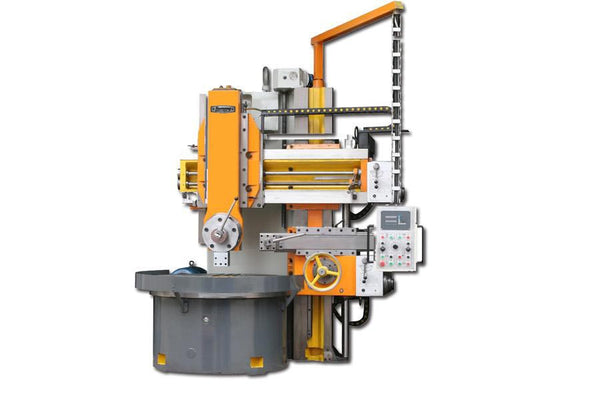

98" X 55" 40 HP Single Column Vertical Lathe

TICK5131

With the Tommy Industrial Vertical Lathe Series you get affordable reliability and features not usually found on basic Vertical Lathes. That's why these CNC Vertical Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops.  Features Include

–Plastic coated guide ways are wearable

–Centralized lubricating oil supplying is convenient

–The spindle is to use model NN30(Grade D)bearing and able to turn precisely

–Gear case is to use 40 Cr gear wheel of gear grinding, which has high precision

–Castings of lathe are to use lost foam foundry(short for LFF)technique. Castings are wearable with good quality and dealt by aging

–Vertical lathe can make rough and accurate turning of cylindrical surface, conical surface, head face, grooving, severance,etc

Model TICK5131 Specifications
Item Imperial Metric
Working Area Turning diameter of tool post 98 in 2500 mm
Working table diameter 98 in 2500 mm
Workpiece height (max.) 55 in 1400 mm
Workpiece weight (max.) 22046 lbs 10000 kg
Tool post Max. cutting force of right tool post 34 KN 34 KN
Horizontal travel of tool post 63 in 1610 mm
Vertical travel of tool post 31 in/ 39 in 800 mm/ 1000 mm
Swing angle of tool post ±30° ±30°
Drive Capacity Motor rating main drive 40 Hp 30 kW
Measures and weights Overall dimensions (length x width x height) 136x155x165 in 3450x3940x4200 mm
Weight 66139 lbs 30000 kg
