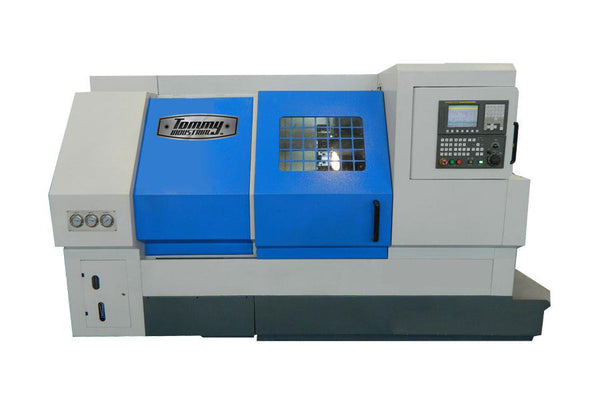

With the Tommy Industrial Slant Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Slant Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include
–Integral lathe bed, super-audio quenching guide and imported spindle bearing
–spindle bore 80mm
–Taiwan 10 positions hydraulic tool post
–10" hydraulic solid chuck, optional 12" solid or hollow chuck
–Turning precision can reach IT6 level
Center and center sleeve
Oil gunOperation manual
|Working Area||Turning length (max.)||21 in||530 mm|
|Turning diameter over bed||22 in||550 mm|
|Travels||Travel X-axis||8 in||215 mm|
|Travel Z-axis||23 in||590 mm|
|Headstock||Spindle speed||35-3500 r/min||35-3500 r/min|
|Spindle bore||3 in||80 mm|
|Rapid Feed||Rapid feed X-axis||591 in/min||15000 mm/min|
|Rapid feed Z-axis||709 in/min||18000 mm/min|
|Tool head||Number of tool stations||10 positions||10 positions|
|Tailstock||Tailstock taper||MT 4||MT 4|
|Tailstock quill diameter||5 in||120 mm|
|Tailstock quill stroke||4 in||100 mm|
|Drive Capacity||Motor rating main drive||25 Hp or 29.5 Hp||18.5 kW or 22 kW|
|Measures and weights||Overall dimensions (length x width x height)||127x64 in||3230x1630 mm|
|Weight||12125 lbs||5500 kg|
