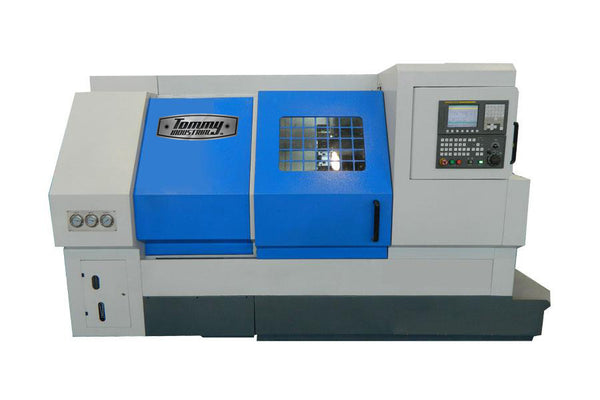

26"L X 18"D Slant Bed CNC Lathe
TIHT460
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
With the Tommy Industrial Slant Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Slant Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include
–Integral lathe bed, super-audio quenching guide and imported spindle bearing
–spindle bore 80mm
–Taiwan 10 positions hydraulic tool post
–10" hydraulic solid chuck, optional 12" solid or hollow chuck
–Turning precision can reach IT6 level
Three-jaw chuck
Center and center sleeve
Wrenches
Oil gun
Operation manual| Item | Imperial | Metric | |
|---|---|---|---|
| Working Area | Turning length (max.) | 26 in | 650 mm |
| Turning diameter over bed | 18 in | 460 mm | |
| Turning diameter over support | 14 in | 350 mm | |
| Travels | Travel X-axis | 8 in | 215 mm |
| Travel Z-axis | 27 in | 675 mm | |
| Headstock | Spindle speed | 35-3500 r/min | 35-3500 r/min |
| Spindle mount | A2-6 | A2-6 | |
| Spindle bore | 2 in | 56 mm | |
| Rapid Feed | (FANUC) | ||
| Rapid feed X-axis | 709 in/min | 18000 mm/min | |
| Rapid feed Z-axis | 630 in/min | 16000 mm/min | |
| Tool head | Number of tool stations | 8 positions | 8 positions |
| Tailstock | Tailstock taper | MT 5 | MT 5 |
| Tailstock quill diameter | 3.3 in | 85 mm | |
| Tailstock quill stroke | 3.5 in | 90 mm | |
| Drive Capacity | Motor rating main drive | 10.1 Hp or 14.8 Hp | 7.5 kW or 11 kW |
| Measures and weights | Overall dimensions (length x width x height) | 125x60x66 in | 3165x1520x1685 mm |
| Weight | 8818 lbs | 4000 kg | |
