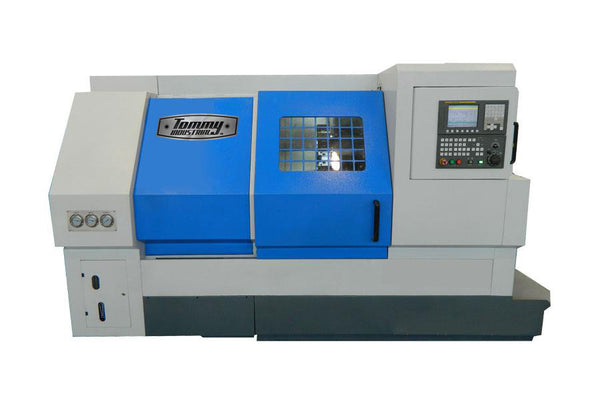

With the Tommy Industrial Slant Bed CNC Lathe Series you get affordable reliability and features not usually found on basic Slant Bed CNC Lathes. That's why these CNC Lathes are a favorite for manufactures, fabricators, maintenance shops and machine shops. Features Include
–Integral lathe bed, super-audio quenching guide and imported spindle bearing
–spindle bore 80mm
–Taiwan 10 positions hydraulic tool post
–10" hydraulic solid chuck, optional 12" solid or hollow chuck
–Turning precision can reach IT6 level
Center and center sleeve
Oil gunOperation manual
|Working Area||Turning length (max.)||16 in||410 mm|
|Turning diameter over bed||14 in||360 mm|
|Turning diameter over support||7 in||180 mm|
|Travels||Travel X-axis||4 in||110 mm|
|Travel Z-axis||18 in||450 mm|
|Headstock||Spindle speed||(Servo) 40-400 r/min||(Servo) 40-400 r/min|
|Spindle bore||2 in||52 mm|
|Rapid feed X-axis||709 in/min||18000 mm/min|
|Rapid feed Z-axis||945 in/min||24000 mm/min|
|Tool head||Number of tool stations||8 positions||8 positions|
|Tailstock||Tailstock taper||MT 4||MT 4|
|Tailstock quill diameter||2.4 in||60 mm|
|Tailstock quill stroke||3.5 in||90 mm|
|Drive Capacity||Motor rating main drive||7.4 Hp or 10.1 Hp||5.5 kW or 7.5 kW|
|Measures and weights||Overall dimensions (length x width x height)||81x57x69 in||2050x1450x1760 mm|
|Weight||7275 lbs||3300 kg|
