Surface Grinder

TIM7160X16

Tommy Industrial® Surface Grinders are a machine tool used to provide precision ground surfaces, either to a critical size or for the surface finish. The typical precision of a surface grinder depends on the type and usage, however ±0.002 mm (±0.0001 in) should be achievable on most of the Tommy Industrial® surface grinders.

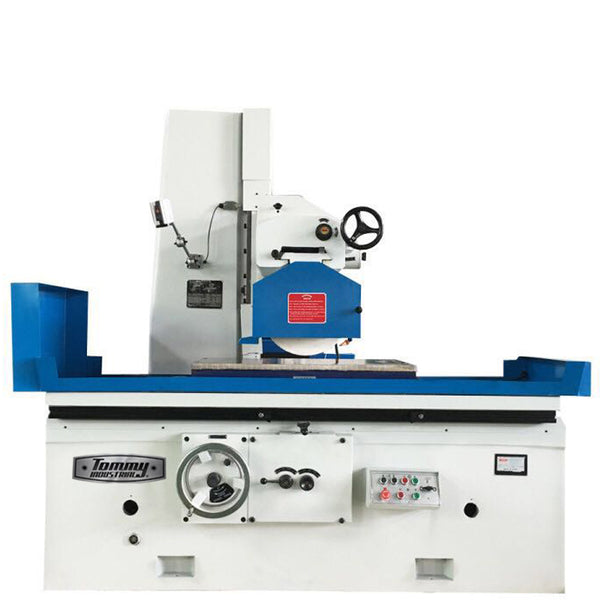

The Tommy Industrial surface grinder model TIM7160X16 has a workpiece capacity of 1600mm x 600 mm x 600 mm.

 For more details check out the specs or give us a call.

Model

Unit

TIM7160x16

Max. workpiece to bi groud

mm

1600x600x600

Longitudinal motion stroke(Hydraulic)

mm

1700

Distance from table surface to spindle center

mm

780

Vertical feed wheel movement per lap

mm

1

Vertical feed hand wheel per movement

mm

0.01

The maximum stroke of transverse motion

mm

650

Horizontal intermittent movement speed(stepless)

m/min

0.5-3

Longitudinal velocity(stepless)

m/min

3-30

Spindle speeds

r/min

1440

Wheel size(diaxwidthxbore)

mm

φ400×50×φ203

Grinding head motor power

kw

7.5

Total motor power

kw

14.5

Oil pump motor power

kw

5.5

Max.loading capacity of table

kg

1780

Net weight

kg

7000

The machined surface of the base of parallelism

mm

1000:0.015

Surface roughness

μm

Ra0.63

Machine size

mm

4600x1950x2400















  1. Standard accessories



NO.

Name

1

Coolant tank

2

Magnetic chuck 600*1600mm

3

Grinding Wheel 400*203*50mm

4

Balancing Arbor

5

Wheel Flange

6

Wheel extractor

7

Leveling wedge and bolt

8

Toolbox and tools

9

Working lamp

10

Wheel dresser stand (diamond pen not included)

11

Electro Magnetic chuck controller



  1. Optional Accessories

NO.

Name

PRICE USD

1

2 axis 0.005mm Digital Readout

$TBD

2

Magnetic separator

$TBD



Model TIM7160X16 Specifications
Item Imperial Metric
