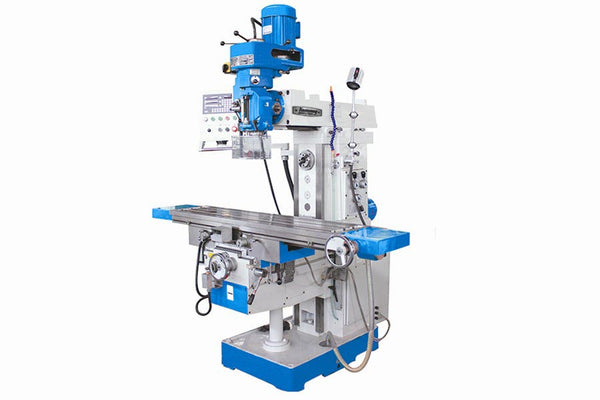

54" X 13" 4 HP Turret Mill
TIXQ6332C
The Tommy Industrial Turret Mill line includes 10 models to choose from. All Tommy Industrial Turret Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some features include:
High speed milling head
Max. vertical travel: 450mm
Driven by servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z
Easy control
Rotary table can be ordered at special request
Standard Accessories:
Intermediate bushingMachine vise QB160
Milling arborDraw bar
NutCarrier ring
Optional Accessories:
Vertical milling headUniversal milling head
Universal dividing headSwivel table
Sizing blockClamping kit
Milling chucksMachine vise
Oil gun| Item | Imperial | Metric | |
|---|---|---|---|
| Working area | Top slide travel | 18 in | 450 mm |
| Table dimensions | 54x13 in | 1370x320 mm | |
| Number of T-slots | 3 positions | 3 positions | |
| T-slots, width | 0.6 in | 14 mm | |
| T-slots, spacing | 3 in | 80 mm | |
| Travels | Travel X-axis | 39 in | 1000 mm |
| Travel Y-axis | 15 in | 380 mm | |
| Travel Z-axis | 16 in | 400 mm | |
| Vertical milling head | Speed range | (16) 65 - 4,660 rpm | (16) 65 - 4,660 rpm |
| Spindle mount | ISO 40 | ISO 40 | |
| Horizontal milling spindle | Speed range | (12) 35 - 1500 rpm | (12) 35 - 1500 rpm |
| Spindle mount (horizontal) | ISO 40 | ISO 40 | |
| Spindle nose to table surface | 3-19 in | 75-475 mm | |
| Spindle axis-to-ram surface distance | 8 in | 200 mm | |
| Rapid feed | Rapid feed X-axis | 39 in/min | 1000 mm/min |
| Rapid feed Y-axis | 39 in/min | 1000 mm/min | |
| Rapid feed Z-axis | 30 in/min | 750 mm/min | |
| Feed | Feed speed X-axis | variable | variable |
| Feed speed Y-axis | variable | variable | |
| Feed speed Z-axis | variable | variable | |
| Drive capacity | Motor rating horizontal spindle | 4 hp | 3 kW |
| Motor rating vertical spindle | 3 or 5 hp | 2 or 3.7 kW | |
| Measures and weights | Overall dimensions (length x width x height) | 68x66x93 in | 1280x1680x2350 mm |
| Weight | 3924 lbs | 1780 kg | |
