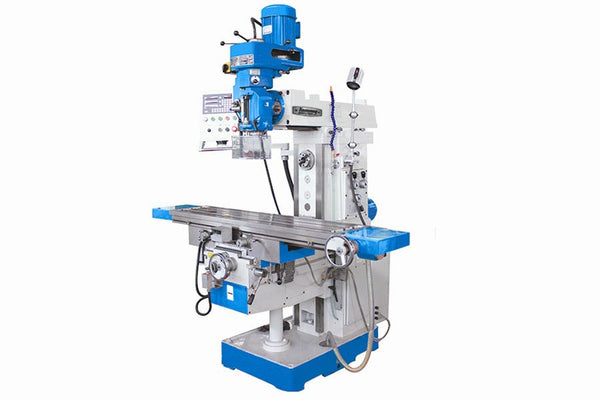

52" X 14" 5 HP Turret Mill
TIX6332HC
This product is not purchasable online at this time. Please call us at 844-895-3316 for purchasing information.
The Tommy Industrial Turret Mill line includes 10 models to choose from. All Tommy Industrial Turret Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some features include:
High speed milling head (5HP)
Max. vertical travel: 460mm
Driven by servo motor
Table automatic feed on X,Y,Z
Automatic rapid feed X,Y,Z
Easy control
Rotary table can be ordered at special request| Item | Imperial | Metric | |
|---|---|---|---|
| Working area | Top slide travel | 19 in | 480 mm |
| Table dimensions | 52x13/14 in | 1325x320/360 mm | |
| Travels | Travel X-axis | 43 in | 1100 mm |
| Travel Y-axis | 17 in | 420 mm | |
| Travel Z-axis | 18 in | 460 mm | |
| Vertical milling head | Speed range | (16) 65 - 4500 rpm, 50-5440, 65-3750 | (16) 65 - 4500 rpm, 50-5440, 65-3750 |
| Spindle mount | ISO 40 | ISO 40 | |
| Quill travel | 5 in | 127 mm | |
| Spindle nose-to-table surface distance | 4.5-21 in | 115-545 mm | |
| Horizontal milling spindle | Speed range | 50 HZ: 45-980 rpm, 60 HZ: 55-1180 rpm | 50 HZ: 45-980 rpm, 60 HZ: 55-1180 rpm |
| Spindle mount | ISO 40 | ISO 40 | |
| Spindle axis-to-ram surface distance | 7 in | 183 mm | |
| Feed | Feed speed X-axis | 1-30 in/min | 30-750 mm/min |
| Feed speed Y-axis | 1-20 in/min | 20-500 mm/min | |
| Feed speed Z-axis | 1-15 in/min | 15-375 mm/min | |
| Drive capacity | Motor rating horizontal spindle | 5 hp | 3.7 kW |
| Motor rating vertical spindle | 5 hp | 3.7 kW | |
