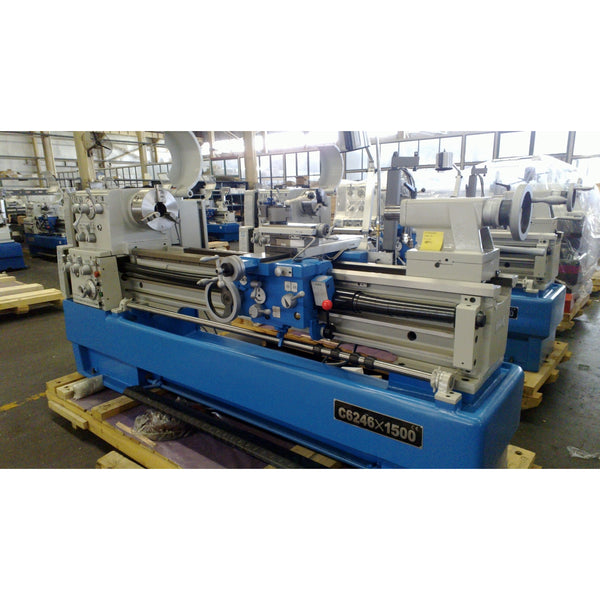

Universal Lathe Machine C6246/1500

C6246/1500

Technical Parameter

Specification

Model

C6246

Swing over bed

460mm(18”)

Swing over cross slide

270mm(10-3/4’‘)

Swing in gap diameter

690mm (27-1/8’‘)

Distance between centers

1500mm(60”)

Valid length of gap

165mm(6-1/2”)

Width of bed

300mm(11-13/16”)

Spindle nose

D1-8

Spindle bore

58mm(2-1/4”)

Taper of spindle bore

No.7 Morse

Range of spindle speed

12 changes, 25 2000r/min

Compound rest travel

128mm(5”)

Cross slide travel

285mm(11-1/4”)

Max. section of tool

25x25mm(1” x1’’)

Lead screw thread

6mm or 4T.P.I.

Longitudinal feeds range

42 kinds, 0.031 1.7mm/rev (0.0011” 0.0633”/rev)

Cross feeds range

42 kinds, 0.014 0.784mm/rev (0.00033” 0.01837”/rev)

Threads metric pitches

41 kinds, 0.1 14mm

Threads imperial pitches

60kinds2 112T.P.I.

Threads diametral pitches

50kinds,4 112DP

Threads module pitches

34 kinds, 0.1 7MP

Quill diameter

60mm(2-5/16’’)

Quill travel

130mm(5”)

Quill taper

No.4 Morse

Main motor power

5.5kW(7.5HP)3PH

Coolant pump power

0.1kW(1/8HP)3PH

Overall

dimension(LxWxH)

275x108x137cm

Packing size(LxW H)

280x112x156cm

Net weight

1810kg

Gross weight

2115kg





Specifications

Standard Accessories

Whole  casting  foot  stand,  Foot  brake, Coolant system, Work light, Three jaw chuck, Four jaw chuck, Steady rest, Follow rest, Face plate, 4-way tool post, Splash guard, Thread chasing dial,Reduction sleeves,Dead centers,Changing gears,Toolbox & tools 1set, Lead screw cover 1.5M, Tool post guard, chuck guard with Siemens microswitch.



Optional
Accessories







Live center point

MT4

Taper attachment

C6246

Digital readout

1.5 meter and 2 axis

1.5 meter and 3 axis

Frequency conversion (with DELTA frequency converter and Variable frequency motor)

Quick change tool post

American-type (include 1 tool post, 2 sets turning tool holder and 2 sets boring tool holder)

European-type (include 1 tool post, 2 sets turning tool holder and 2 sets boring tool holder)



Model C6246/1500 Specifications
Item Imperial Metric
