Vertical Drilling / Tapping Machine

TIZ5180B

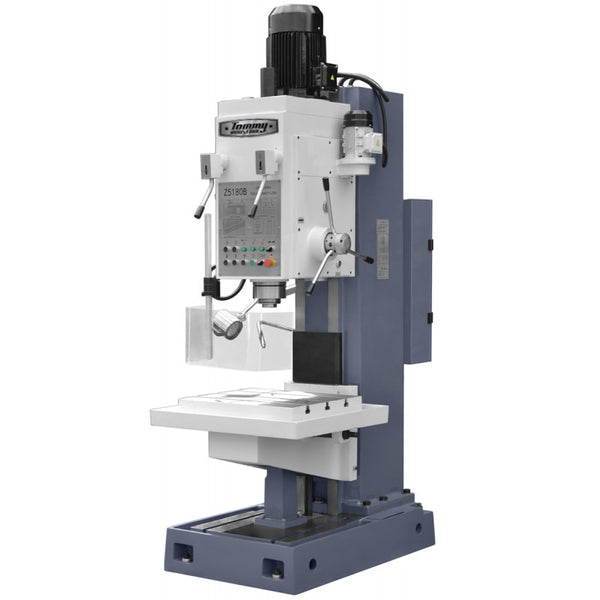

Tommy Industrial® Model TIZ5180B Vertical Drilling / Tapping Machine.

This Square-column vertical drilling machine is a universal general- purpose machine. It’s used for counter-sinking, spot-facing drilling, tapping, boring, reaming, etc. The machine spindle tapping is automatic inversion and fretting feed, so the machine is suitable for tapping of blind and determined holes. The machine has high efficiency, high accuracy, low noise, wide range of variable speed, centralized controls good looking appearance, easy maintenance and operation

Model

Z5180B

Max. Drilling capacity

mm

80

Max. Tapping capacity

Mm

M42

Max. feed resistance

N

30000

Max. Permissible spindle torque

N.M

800

power of main motor

kW

7.5

Throat distance

mm

375

Spindle taper



MT6

Spindle travel

mm

250

Spindle box travel(manual)

mm

250

Spindle speeds range(steps)

r/min

40-570(9)

Feed rates(steps)

nm/rev

0.1-0.78(6)

Max. Travel of table

mm

300

Working Surface of Worktable

mm

650X550

Max. distance from spindle nose to worktable surface

mm

800(1250)

Overall dimensions (LxWxH)

mm

965X1452X2787

Net weight of machine/Gross Weight

kg

1850/1935

Packing dimension (LxWxH)

cm

150X92X280 or

275X101X179

(Lay down horizontally)



Model TIZ5180B Specifications
Item Imperial Metric
