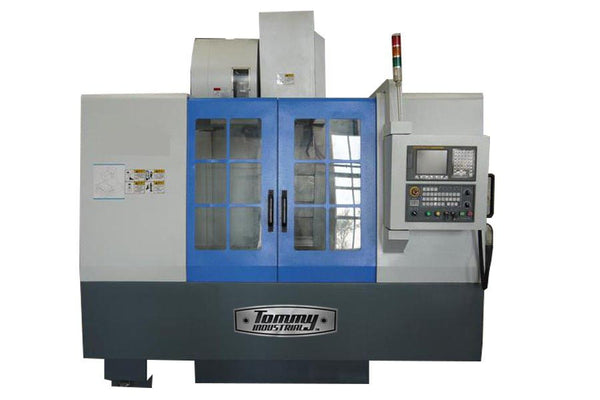

The Tommy Industrial Vertical Machining Center series lineup offers precision machining abilities in well-built package. Features Include:
–Good rigidity: guide of a widened span for the machine body with high reigidity and great ability of shock absorption
–High efficiency: equipped with a tool magazine featuring swift automatic tool changing and rigidity tapping
–Large travel: larger travels in all three directions than those of the same specification in the market
–Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tool magazine,ball screw, bearings, etc
–New structure: spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy
Three-jaw chuck
Center and center sleeve
Wrenches
Oil gun
Operation manualItem | Imperial | Metric | |
---|---|---|---|
Working area | Table | 51x24 in | 1300x600 mm |
Workpiece weight (max.) | 1764 lbs | 800 kg | |
Travels | Travel X-axis | 39 in | 1000 mm |
Travel Y-axis | 24 in | 600 mm | |
Travel Z-axis | 24 in | 600 mm | |
Headstock | Speed | 8000 r/min | 8000 r/min |
Rapid feed | Rapid feed X-axis | 591 in/min | 15000 mm/min |
Rapid feed Y-axis | 591 in/min | 15000 mm/min | |
Feed | Feed Z-axis | 472 in/min | 12000 mm/min |
Tool head | Number of tool stations | Disc 20/24 or Helical 16/20 | Disc 20/24 or Helical 16/20 |
Accuracies | Positioning accuracy | 0.00079 in/ 0.00059 in/ 0.00059 in | 0.02 mm/ 0.015 mm/ 0.015 mm |
Repeatability | 0.00039 in/ 0.00032 in/ 0.00032 in | 0.01 mm/ 0.008 mm/ 0.008 mm | |
Drive capacity | Motor rating main drive | 37.5 hp | 28 kW |
Measures and weights | Overall dimensions (length x width x height) | 128x104x129 in | 3250x2650x3270 mm |
Weight | 16535 lbs | 7500 kg |
