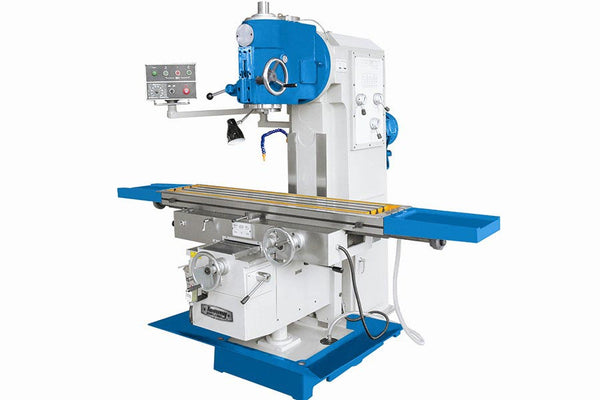

The Tommy Industrial Vertical Mill line includes 19 models to choose from. All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
Easy operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Processing all kinds of flat ,grooved , gear
Rotary table configured
Dividing head optional configured
Head stock swivels ±30°
Spindle is driven by gears,
12 steps speed
Applied to heavy cut
Milling head adopts cyclic and forcible lubrication
Machine with automatic feed controlled one servo motor in XYZ axisOne handle to control forward and reverse movement in XYZ
|Working area||Table set up area||63x14 in||1600x360 mm|
|Number of T-slots||3 positions||3 positions|
|T-slots, width||0.7 in||18 mm|
|T-slots, spacing||3 in||80 mm|
|Travels||Travel X-axis||51 in||1300 mm|
|Travel Y-axis||13 in||320 mm|
|Travel Z-axis||18 in||460 mm|
|Spindle||Spindle speed||50-1475 rpm||50-1475 rpm|
|Spindle mount||ISO 50||ISO 50|
|Spindle nose-to-table surface distance||2-20 in||50-510 mm|
|Vertical milling head||Milling head swivel range||±30 °||±30 °|
|Rapid feed||Rapid feed X-axis||47 in/min||1200 mm/min|
|Rapid feed Y-axis||31 in/min||800 mm/min|
|Rapid feed Z-axis||24 in/min||600 mm/min|
|Feed||Feed speed X-axis||1-30 in/min||30-750 mm/min|
|Feed speed Y-axis||1-20 in/min||20-500 mm/min|
|Feed speed Z-axis||1-15 in/min||15-375 mm/min|
|Drive capacity||Motor rating main spindle||7 hp||5.5 kW|
|Motor rating X-axis||10 Nm||10 Nm|
|Motor rating Y-axis||10 Nm||10 Nm|
|Motor rating Z-axis||10 Nm||10 Nm|
|Measures and weights||Overall dimensions (length x width x height)||99x83x85 in||2520x2100x2150 mm|
|Weight||6600 lbs||3000 kg|
