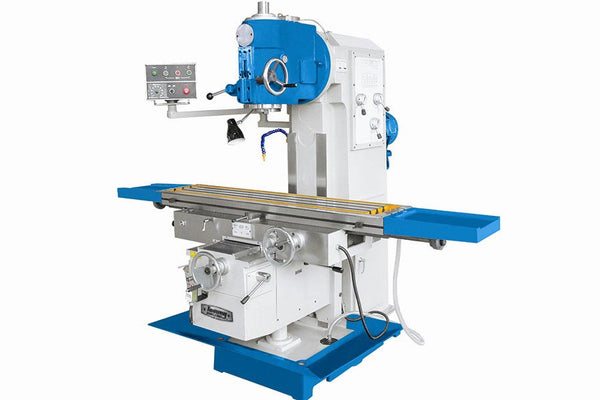

The Tommy Industrial Vertical Mill line includes 19 models to choose from. All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
Easy operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Processing all kinds of flat ,grooved , gear
Rotary table configured
Dividing head optional configured
Head stock swivels ±30°
Spindle is driven by gears,
12 steps speed
Applied to heavy cut
Milling head adopts cyclic and forcible lubrication
Machine with automatic feed controlled one servo motor in XYZ axisOne handle to control forward and reverse movement in XYZ
|Working area||Table set up area||52x13 in||1325x320 mm|
|Number of T-slots||3 positions||3 positions|
|T-slots, width||0.6 in||14 mm|
|T-slots, spacing||3 in||80 mm|
|Travels||Travel X-axis||35 in||900 mm|
|Travel Y-axis||15 in||380 mm|
|Travel Z-axis||16 in||400 mm|
|Spindle||Spindle speed||(12) 35-1500 rpm||(12) 35-1500 rpm|
|Spindle mount||ISO 40||ISO 40|
|Spindle nose-to-table surface distance||1-17 in||35-435 mm|
|Quill stroke||3 in||70 mm|
|Vertical milling head||Milling head swivel range||±30 °||±30 °|
|Rapid feed||Rapid feed X-axis||53 in/min||1335 mm/min|
|Rapid feed Y-axis||54 in/min||1375 mm/min|
|Rapid feed Z-axis||39 in/min||1000 mm/min|
|Table feed||Feed X-axis||1-33 in/min||30-830 mm/min|
|Feed Y-axis||1-33 in/min||30-830 mm/min|
|Feed Z-axis||1-25 in/min||23-625 mm/min|
|Drive capacity||Motor rating main spindle||4 hp||3 kW|
|Measures and weights||Overall dimensions (length x width x height)||68x66x71 in||1720x1680x1810 mm|
|Weight||3500 lbs||1600 kg|
