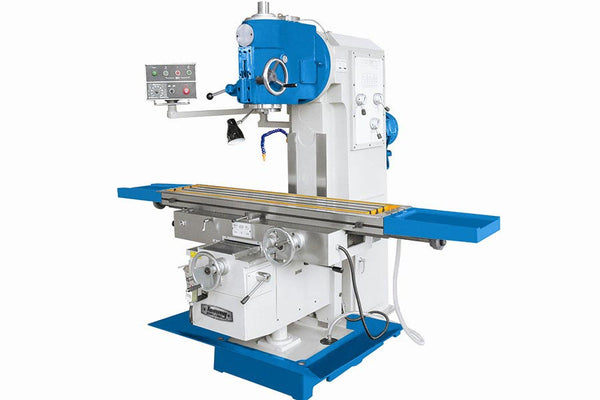

52" x 13" 7 HP Vertical Mill
TIXL5032C
The Tommy Industrial Vertical Mill line includes 19 models to choose from. All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
Easy operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Processing all kinds of flat ,grooved , gear
Rotary table configured
Dividing head optional configured
Expanding usage
Head stock swivels ±30°
Spindle is driven by gears,
12 steps speed
Applied to heavy cut
Milling head adopts cyclic and forcible lubrication
Machine with automatic feed controlled one servo motor in XYZ axis
One handle to control forward and reverse movement in XYZ| Item | Imperial | Metric | |
|---|---|---|---|
| Working area | Table set up area | 52x13 in | 1325x320 mm |
| Number of T-slots | 3 positions | 3 positions | |
| T-slots, width | 0.7 in | 18 mm | |
| T-slots, spacing | 3 in | 70 mm | |
| Travels | Travel X-axis | 43 in | 1100 mm |
| Travel Y-axis | 13 in | 320 mm | |
| Travel Z-axis | 18 in | 450 mm | |
| Spindle | Spindle speed | 50-1475 rpm | 50-1475 rpm |
| Spindle mount | ISO 50 | ISO 50 | |
| Spindle nose-to-table surface distance | 2-20 in | 50-510 mm | |
| Vertical milling head | Milling head swivel range | ±30 ° | ±30 ° |
| Rapid feed | Rapid feed X-axis | 47 in/min | 1200 mm/min |
| Rapid feed Y-axis | 31 in/min | 800 mm/min | |
| Rapid feed Z-axis | 24 in/min | 600 mm/min | |
| Table feed | Feed X-axis | 1-30 in/min | 30-750 mm/min |
| Feed Y-axis | 1-20 in/min | 20-500 mm/min | |
| Feed Z-axis | 1-15 in/min | 15-375 mm/min | |
| Drive capacity | Motor rating main spindle | 7 hp | 5.5 kW |
| Motor rating X-axis | 10 Nm | 10 Nm | |
| Motor rating Y-axis | 10 Nm | 10 Nm | |
| Motor rating Z-axis | 10 Nm | 10 Nm | |
| Measures and weights | Overall dimensions (length x width x height) | 88x83x85 in | 2245x2100x2150 mm |
| Weight | 6300 lbs | 2850 kg | |
