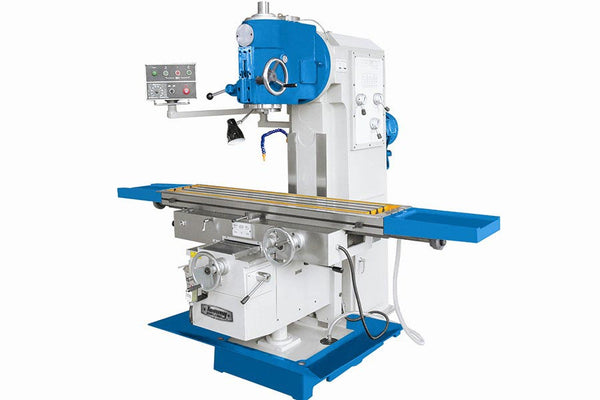

54" x 13" 4 HP Vertical Mill


The Tommy Industrial Vertical Mill line includes 19 models to choose from.  All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed.  Some of the features include:

Easy operate, reliable performance.

Widely used in all kinds of mechanical processing department.

Processing all kinds of flat ,grooved , gear

Rotary table configured

Dividing head optional configured

Expanding usage

Head stock swivels ±30°

Spindle is driven by gears,

12 steps speed

Applied to heavy cut

Milling head adopts cyclic and forcible lubrication

Machine with automatic feed controlled one servo motor in XYZ axis

One handle to control forward and reverse movement in XYZ

Model TIXQ5032A Specifications
Item Imperial Metric
Working area Table set up area 54x13 in 1370x320 mm
Number of T-slots 3 positions 3 positions
T-slots, width 0.6 in 14 mm
T-slots, spacing 3 in 80 mm
Travels Travel X-axis 32 in 820 mm
Travel Y-axis 12 in 300 mm
Travel Z-axis 16 in 400 mm
Spindle Spindle speed (12) 35-1500 rpm (12) 35-1500 rpm
Spindle mount ISO 40 ISO 40
Spindle nose-to-table surface distance 1-17 in 35-435 mm
Quill stroke 3 in 70 mm
Vertical milling head Milling head swivel range ±30 ° ±30 °
Rapid feed Rapid feed X-axis 53 in/min 1335 mm/min
Rapid feed Y-axis 54 in/min 1375 mm/min
Rapid feed Z-axis 39 in/min 1000 mm/min
Table feed Feed X-axis 1-33 in/min 30-830 mm/min
Feed Y-axis 1-33 in/min 30-830 mm/min
Feed Z-axis 1-25 in/min 23-625 mm/min
Drive capacity Motor rating main spindle 4 hp 3 kW
Measures and weights Overall dimensions (length x width x height) 72x66x71 in 1820x1680x1810 mm
Weight 3500 lbs 1600 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
