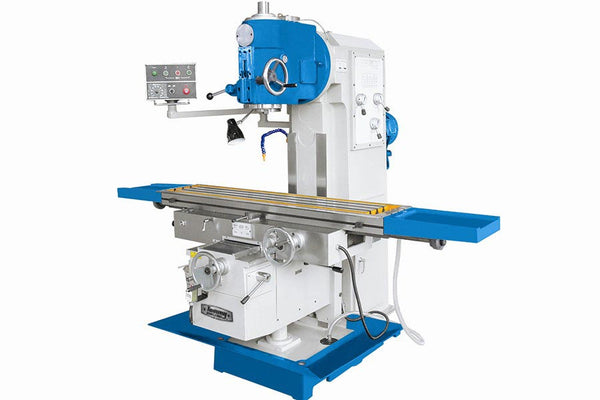

54" x 12" 4 HP Vertical Mill
TIXL5030A
The Tommy Industrial Vertical Mill line includes 19 models to choose from. All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
Easy operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Processing all kinds of flat ,grooved , gear
Rotary table configured
Dividing head optional configured
Expanding usage
Head stock swivels ±30°
Spindle is driven by gears,
12 steps speed
Applied to heavy cut
Milling head adopts cyclic and forcible lubrication
Machine with automatic feed controlled one servo motor in XYZ axis
One handle to control forward and reverse movement in XYZ| Item | Imperial | Metric | |
|---|---|---|---|
| Working area | Table set up area | 54x12 in | 1370x300mm |
| Number of T-slots | 3 positions | 3 positions | |
| T-slots, width | 0.6 in | 14 mm | |
| T-slots, spacing | 3 in | 80 mm | |
| Travels | Travel X-axis | 28 in | 820 mm |
| Travel Y-axis | 12 in | 300 mm | |
| Travel Z-axis | 16 in | 400 mm | |
| Spindle | Spindle speed | (12) 35-1300 rpm | (12) 35-1300 rpm |
| Spindle mount | ISO 40 | ISO 40 | |
| Spindle nose-to-table surface distance | 1-17 in | 35-435 mm | |
| Quill stroke | 3 in | 70 mm | |
| Vertical milling head | Milling head swivel range | ±30 ° | ±30 ° |
| Rapid feed | Rapid feed X-axis | 53 in/min | 1335 mm/min |
| Rapid feed Y-axis | 54 in/min | 1375 mm/min | |
| Rapid feed Z-axis | 39 in/min | 1000 mm/min | |
| Table feed | Feed X-axis | 1-33 in/min | 30-830 mm/min |
| Feed Y-axis | 1-33 in/min | 30-830 mm/min | |
| Feed Z-axis | 1-25 in/min | 30-625 mm/min | |
| Drive capacity | Motor rating main spindle | 4 hp | 3 kW |
| Measures and weights | Overall dimensions (length x width x height) | 72x66x71 in | 1820x1680x1810 mm |
| Weight | 3400 lbs | 1550 kg | |
