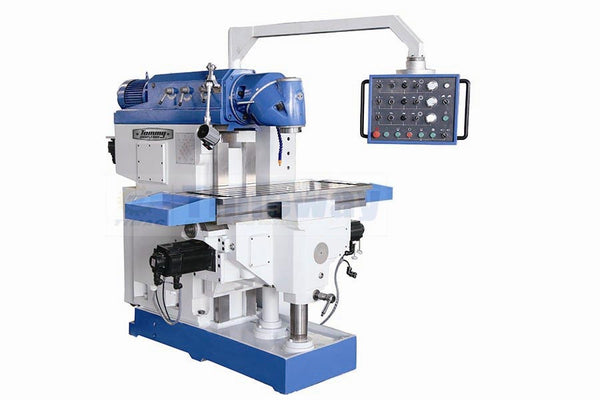

63" X 13" 10HP Vertical Mill

TIX5032BH

The Tommy Industrial Vertical Mill line includes 19 models to choose from.  All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed.  Some of the features include:

Easy operate, reliable performance.

Widely used in all kinds of mechanical processing department.

Processing all kinds of flat ,grooved , gear

Rotary table configured

Dividing head optional configured

Expanding usage

Head stock swivels ±30°

Spindle is driven by gears,

12 steps speed

Applied to heavy cut

Milling head adopts cyclic and forcible lubrication

Machine with automatic feed controlled one servo motor in XYZ axis

One handle to control forward and reverse movement in XYZ

Model TIX5032BH Specifications
Item Imperial Metric
Working area Table set up area 63x13 in 1600x320mm
Number of T-slots 3 positions 3 positions
T-slots, width 0.7 in 18 mm
T-slots, spacing 3 in 70 mm
Travels Travel X-axis 35 in 900/880 mm
Travel Y-axis 10/9 in 255/240 mm
Travel Z-axis 18/17 in 460/440 mm
Spindle Spindle speed (18) 30-1500 rpm (18) 30-1500 rpm
Spindle mount ISO 50 ISO 50
Spindle nose-to-table surface distance 1-19 in 30-490 mm
Quill stroke 3 in 70 mm
Vertical milling head Milling head swivel range ±45 ° ±45 °
Rapid feed Rapid feed X-axis 91 in/min 2300 mm/min
Rapid feed Y-axis 61 in/min 1540 mm/min
Rapid feed Z-axis 30 in/min 770 mm/min
Drive capacity Motor rating main spindle 10 hp 7.5 kW
Feed motor 2 hp 1.5 kW
Measures and weights Overall dimensions (length x width x height) 90x81x82 in 2294x2050x2084 mm
Weight 6800 lbs/ 7500 lbs 3100 kg/ 3400 kg

Request a quote on this product by filling out your contact information and any notes. A sales engineer will respond as soon as possible.
