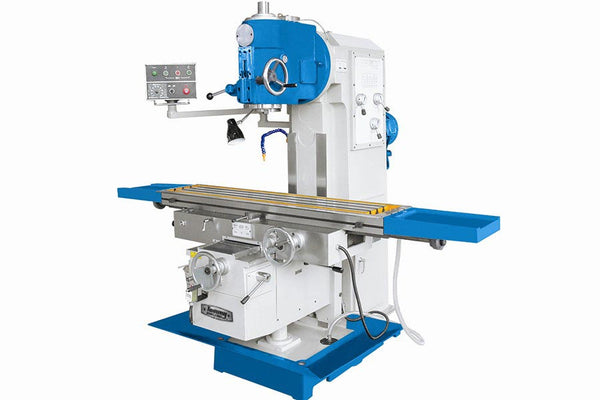

67" x 16" 15 HP Vertical Mill
TIX5040
The Tommy Industrial Vertical Mill line includes 19 models to choose from. All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed. Some of the features include:
Easy operate, reliable performance.
Widely used in all kinds of mechanical processing department.
Processing all kinds of flat ,grooved , gear
Rotary table configured
Dividing head optional configured
Expanding usage
Head stock swivels ±30°
Spindle is driven by gears,
12 steps speed
Applied to heavy cut
Milling head adopts cyclic and forcible lubrication
Machine with automatic feed controlled one servo motor in XYZ axis
One handle to control forward and reverse movement in XYZ| Item | Imperial | Metric | |
|---|---|---|---|
| Working area | Table set up area | 67x16 in | 1700x400mm |
| Number of T-slots | 3 positions | 3 positions | |
| T-slots, width | 0.7 in | 18 mm | |
| Max. load | 1800 lbs | 600 kg | |
| Travels | Travel X-axis | 35 in | 900/880 mm |
| Travel Y-axis | 12 in | 315/300 mm | |
| Travel Z-axis | 15 in | 385/365 mm | |
| Spindle | Spindle speed | (18) 30-1500 rpm | (18) 30-1500 rpm |
| Spindle mount | ISO 50 | ISO 50 | |
| Spindle nose-to-table surface distance | 5/20 in | 115/500 mm | |
| Quill stroke | 3 in | 70 mm | |
| Vertical milling head | Milling head swivel range | ±45 ° | ±45 ° |
| Rapid feed | Rapid feed X-axis | 91 in/min | 2300 mm/min |
| Rapid feed Y-axis | 61 in/min | 1540 mm/min | |
| Rapid feed Z-axis | 30 in/min | 770 mm/min | |
| Table feed | Feed X-axis | 1-46 in/min | 23.5-1180 mm/min |
| Feed Y-axis | 1-31 in/min | 15-786 mm/min | |
| Feed Z-axis | 0-16 in/min | 8-394 mm/min | |
| Drive capacity | Motor rating main spindle | 15 hp | 11 kW |
| Measures and weights | Overall dimensions (length x width x height) | 101x85x90 in | 2556x2159x2298 mm |
| Weight | 9400 lbs | 4250 kg | |
