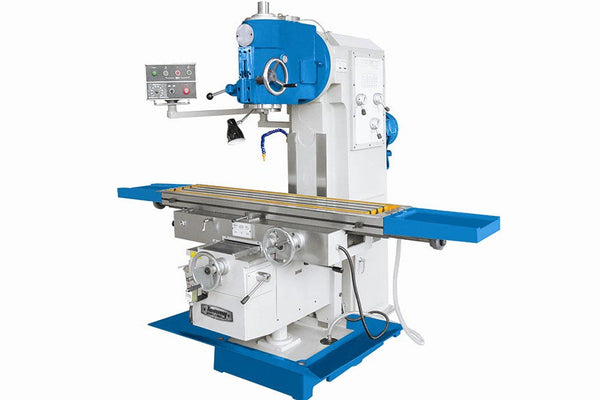

52" x 13" 2 HP Vertical Mill


The Tommy Industrial Vertical Mill line includes 19 models to choose from.  All Tommy Industrial Vertical Mills are constructed out of high grade steel with a solid frame and heavy duty bed.  Some of the features include:

Easy operate, reliable performance.

Widely used in all kinds of mechanical processing department.

Processing all kinds of flat ,grooved , gear

Rotary table configured

Dividing head optional configured

Expanding usage

Head stock swivels ±30°

Spindle is driven by gears,

12 steps speed

Applied to heavy cut

Milling head adopts cyclic and forcible lubrication

Machine with automatic feed controlled one servo motor in XYZ axis

One handle to control forward and reverse movement in XYZ

Model TIX5040B Specifications
Item Imperial Metric
Working area Table set up area 52x13 in 1325x320mm
Number of T-slots 3 positions 3 positions
T-slots, width 0.7 in 18 mm
T-slots, spacing 3 in 70 mm
Travels Travel X-axis 28/27 in 700/680 mm
Travel Y-axis 10/9 in 255/240 mm
Travel Z-axis 15/14 in 370/350 mm
Spindle Spindle speed (18) 30-1500 rpm (18) 30-1500 rpm
Spindle mount ISO 50 ISO 50
Spindle nose-to-table surface distance 1-16 in 30-400 mm
Quill stroke 3 in 70 mm
Vertical milling head Milling head swivel range ±45 ° ±45 °
Rapid feed Rapid feed X-axis 91 in/min 2300 mm/min
Rapid feed Y-axis 61 in/min 1540 mm/min
Rapid feed Z-axis 30 in/min 770 mm/min
Drive capacity Motor rating main spindle 10 hp 7.5 kW
Feed motor 2 hp 1.5 kW
Measures and weights Overall dimensions (length x width x height) 90x70x75 in 2294x1770x1904 mm
Weight 6400/7100 lbs 2900/3200 kg
