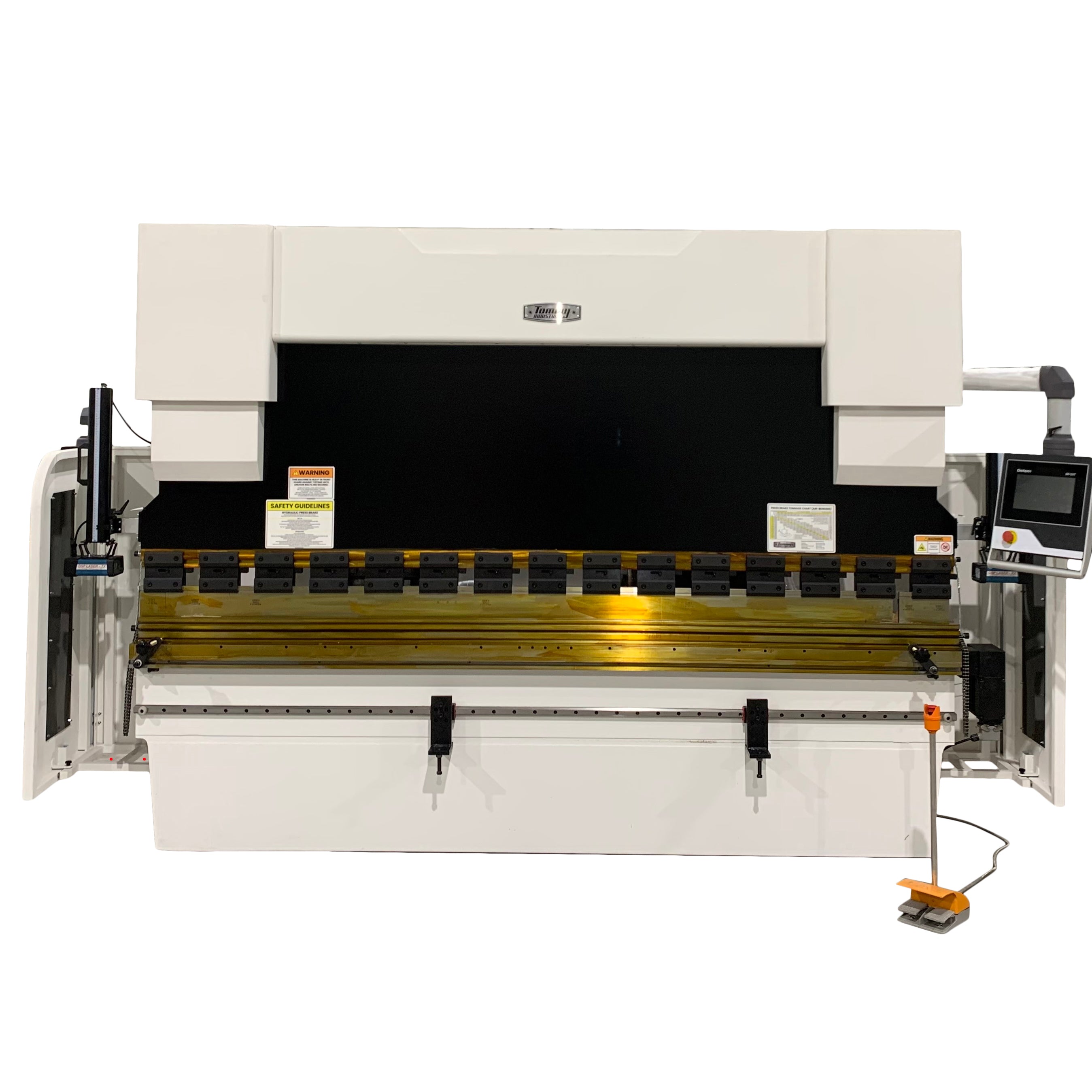

Tommy Industrial® hydraulic press brakes provide exceptional performance by utilizing high quality components, resulting in a precise machine that delivers accurate bends time and time again.
All Tommy Industrial® press brakes start out as base machines that include many standard features as listed below. However, we understand that some customers may require a more advanced press brake; that’s why we offer many advanced controller systems and machine options that will meet and exceed your needs, surpass expectations, and meet your budget.
When manufacturing our Tommy Industrial® press brakes, we only use the best steel and components available, some brand name components included are:
STANDARD EQUIPMENT ON ALL Tommy Industrial® Press Brakes includes:
AVAILABLE CONTROL SYSTEM OPTIONS:
OTHER AVAILABLE OPTIONS:
Note: This Tommy Industrial® press brake includes a general-purpose goose-neck punch and multi-opening die. The included general-purpose goose-neck punch and multi-opening die are for training purposes only. There is no warranty on these items. End user should purchase tooling to meet their unique needs and specifications.
|Working area||Pressure force||137 ton||1250 kN|
|Brake length||98 in||2500 mm|
|Distance between columns||79 in||2000 mm|
|Throat||13 in||320 mm|
|Clear opening||15 in||385 mm|
|Drive capacity||Motor rating main drive||10 hp||7.5 kW|
|Measures and weights||Hydraulic tank volume|
|Overall dimensions (length x width x height)||101x61x89||2560x1550x2250 mm|
